REMOVAL - Continued
10
11
12
3
13
HYEX00531

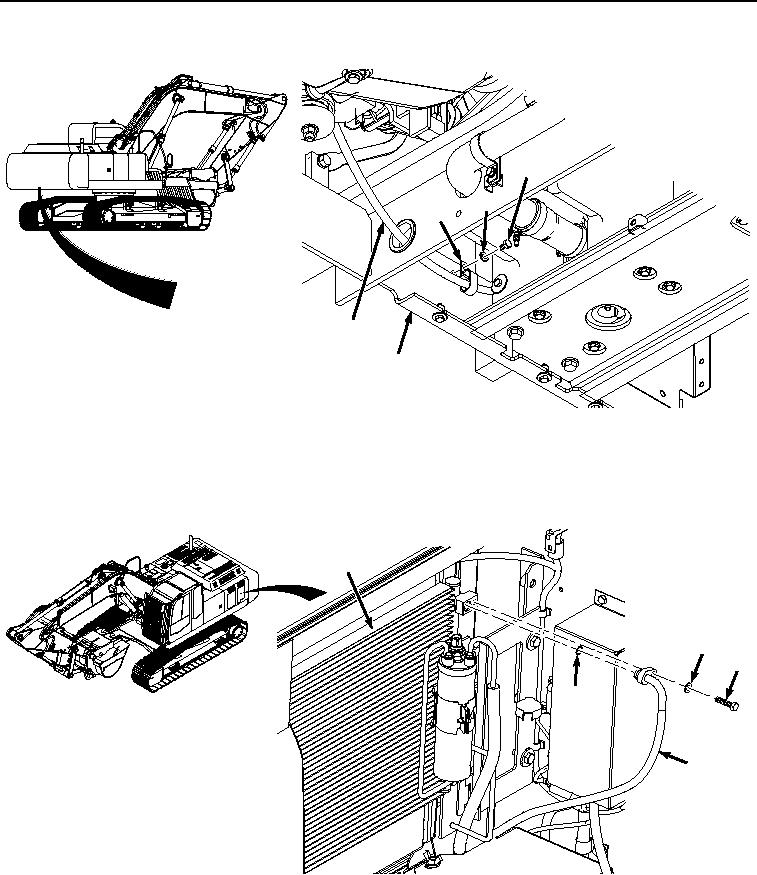

Figure 2. Clamp Removal.
5.
Remove bolt (Figure 3, Item 14), washer (Figure 3, Item 15), hose (Figure 3, Item 3), and O-ring (Figure 3,
Item 16) from condenser (Figure 3, Item 17).
17
15
14
16
3
HYEX00519
Figure 3.
Hose Removal From Condenser.
6.
Remove O-ring (Figure 3, Item 16) from hose (Figure 3, Item 3). Discard O-ring.
