TM 5-3805-294-23-4
0533
REMOVAL - Continued
1
2
3
4
5
9
8
7
6
HYEX02343

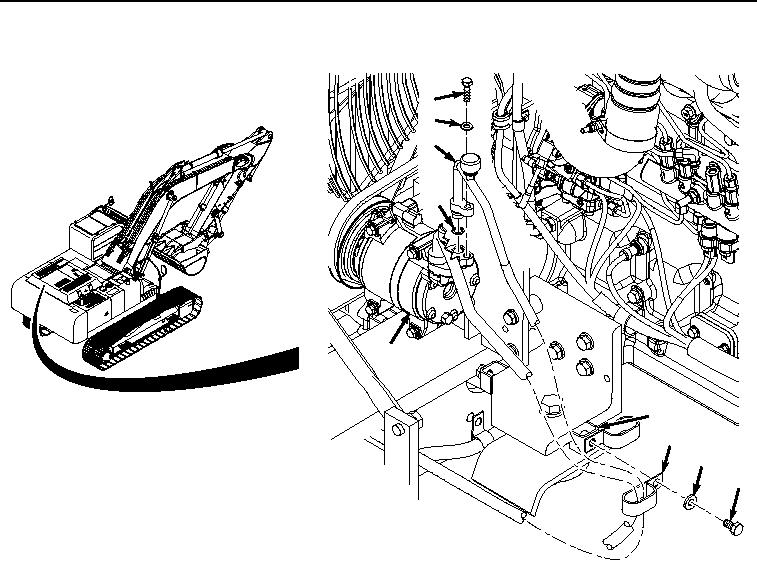

Figure 1.
Hose Removal from Compressor.
2.
Remove O-ring (Figure 1, Item 4) from hose (Figure 1, Item 3). Discard O-ring.
3.
Remove bolt (Figure 1, Item 6), washer (Figure 1, Item 7), and clamp (Figure 1, Item 8) from hose (Figure 1,
Item 3) and bracket (Figure 1, Item 9).
4.
Remove bolt (Figure 2, Item 10), washer (Figure 2, Item 11), and clamp (Figure 2, Item 12) from hose (Figure
2, Item 3) and frame (Figure 2, Item 13).
