TM 5-3805-294-23-4
0535
REMOVAL
WARNING
Ensure electrical power is off prior to working on all electrical connections. Prior to working
on or around vehicle, remove all jewelry, such as rings, ID tags, bracelets, etc. Jewelry, and
tools can catch on equipment, contact positive electrical circuits, and cause a direct short,
severe burns, or electrical shock. Failure to comply may result in injury or death to personnel.
1.

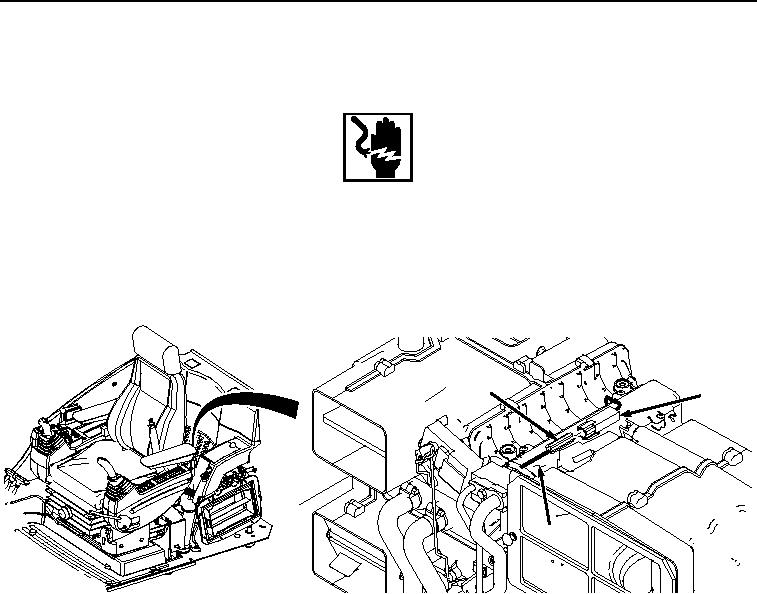

Remove right-hand console wiring harness W11 connector B41 (Figure 1, Item 1) from freeze switch connector
(Figure 1, Item 2).
1
2
3
HYEX02186
Figure 1.
Remove Wiring.
2.
Remove freeze switch connector (Figure 1, Item 2) from evaporator cover (Figure 1, Item 3).
3.
Remove screw (Figure 2, Item 4), washer (Figure 2, Item 5), hose (Figure 2, Item 6), and O-ring (Figure 2,
Item 7) from expansion valve (Figure 2, Item 8).
