TM 5-3805-294-23-4
0564
SIDE COVERS REMOVAL - Continued
26
27
25
29
28
31
30
32
HYEX01131

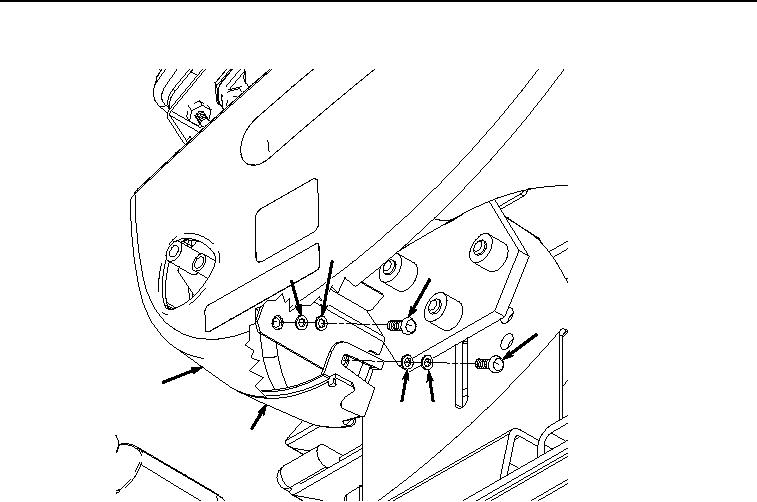

Figure 3.
Side Covers Removal.
3.
Remove bolt (Figure 3, Item 29), lockwasher (Figure 3, Item 30), and washer (Figure 3, Item 31) from cover
(Figure 3, Item 32). Discard lockwasher.
4.
Remove bolt (Figure 4, Item 33), lockwasher (Figure 4, Item 34), and washer (Figure 4, Item 35) from covers
(Figure 4, Item 28) and (Figure 4, Item 32). Discard lockwasher.
0564-4
