TM 5-3805-294-23-4
0564
SIDE COVERS INSTALLATION - Continued
10
37
36
33
34
35
32
28
HYEX01132

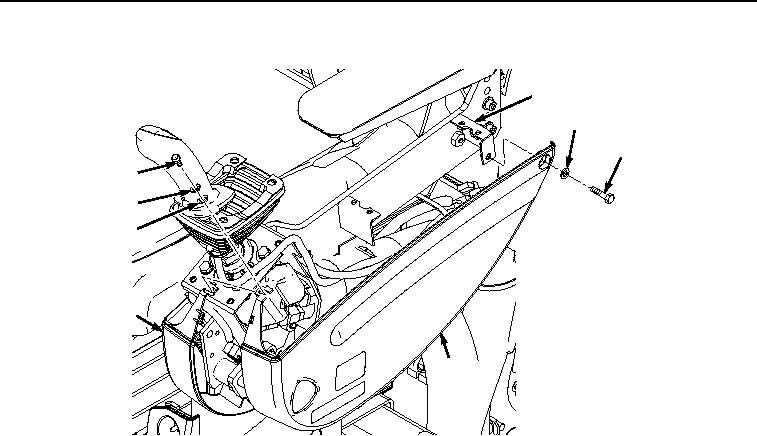

Figure 7. Outer Side Cover Installation.
3.
Install bolt (Figure 7, Item 33), lockwasher (Figure 7, Item 34), and washer (Figure 7, Item 35) to covers (Figure
7, Item 28) and (Figure 7, Item 32).
4.
Install bolt (Figure 8, Item 29), lockwasher (Figure 8, Item 30), and washer (Figure 8, Item 31) to cover (Figure
8, Item 32).
