TM 5-3805-294-23-4
0566
REAR TRAY REMOVAL - Continued
1.
Remove three caps (Figure 1, Item 1) and isolators (Figure 1, Item 2) from tray (Figure 1, Item 3).
1
2
3
4
5
6
HYEX00946

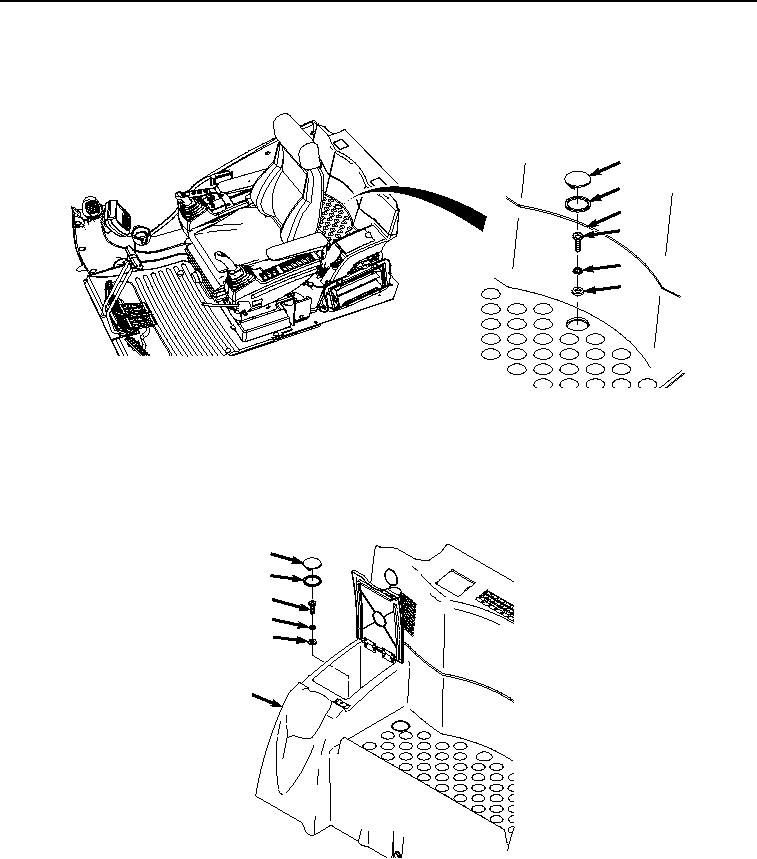

Figure 1. Rear Tray Center Screws Removal.
2.
Remove three screws (Figure 1, Item 4), lockwashers (Figure 1, Item 5), and washers (Figure 1, Item 6) from
tray (Figure 1, Item 3). Discard lockwashers.
3.
Remove cap (Figure 2, Item 7) and isolator (Figure 2, Item 8) from tray (Figure 2, Item 3).
7
8
9
10
11
3
HYEX00947
Figure 2.
Rear Tray Left Screw Removal.
4.
Remove screw (Figure 2, Item 9), lockwasher (Figure 2, Item 10), and washer (Figure 2, Item 11) from tray
(Figure 2, Item 3). Discard lockwasher.
5.
Remove cover (Figure 3, Item 12) from tray (Figure 3, Item 3).
