TM 5-3805-294-23-4
0566
REAR COVER AND AIR CONDITIONER REAR DUCT INSTALLATION - Continued
24
27
26
25
23
HYEX00950

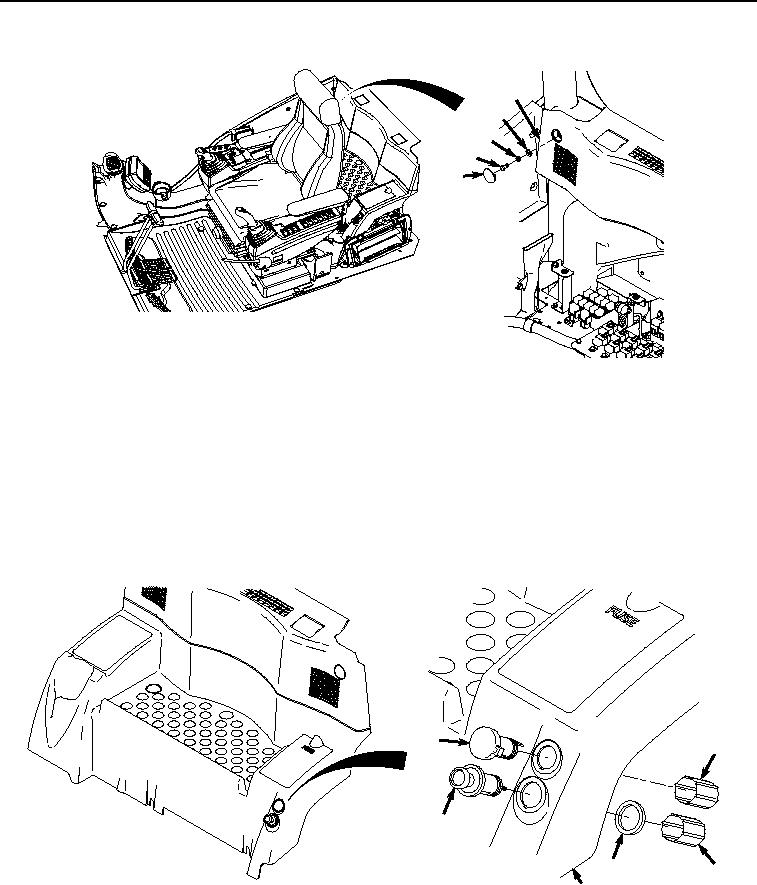

Figure 10.
Rear Cover Installation.
6.
Install two caps (Figure 10, Item 23) to cover (Figure 10, Item 24).
END OF TASK
REAR TRAY ASSEMBLY
1.
Install mechanical lighter (Figure 11, Item 20), gasket (Figure 11, Item 21), and shell (Figure 11, Item 22) to
tray (Figure 11, Item 3).
18
19
20
21
22
3
HYEX00949
Figure 11.
Connector Terminal and Mechanical Lighter Installation.
2.
Install connector terminal (Figure 11, Item 18) and shell (Figure 11, Item 19) to tray (Figure 11, Item 3).
END OF TASK
