ASSEMBLY - Continued
59, 60, 61
37
59, 60, 61
59, 60, 61
20
HYEX02605

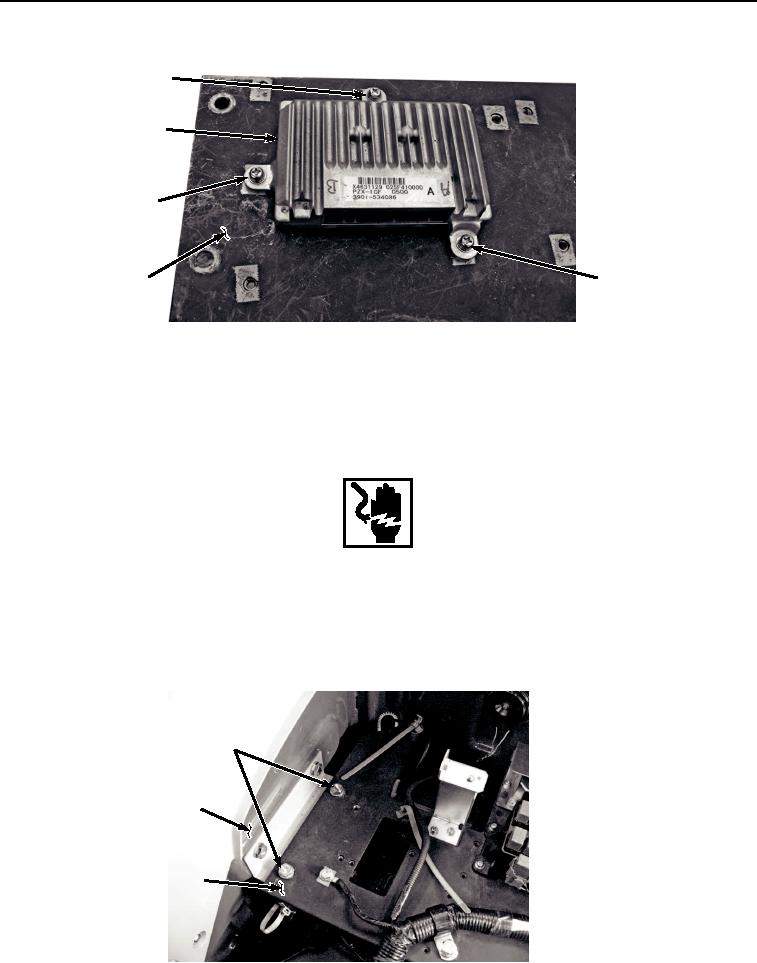

Figure 25.
Information Controller Installation.
END OF TASK
INSTALLATION
WARNING
Ensure electrical power is off prior to working on all electrical connections. Prior to working
on or around vehicle, remove all jewelry, such as rings, ID tags, bracelets, etc. Jewelry, and
tools can catch on equipment, contact positive electrical circuits, and cause a direct short,
severe burns, or electrical shock. Failure to comply may result in injury or death to personnel.
1.
Install bracket (Figure 26, Item 20) to cab (Figure 26, Item 51) with two bolts (Figure 26, Item 57) and washers
(Figure 26, Item 58).
57, 58
51
20
HYEX02682
Figure 26.
Cab Wiring Harness Bracket Installation.
