INSTALLATION - Continued
20
21
21
22
17
18
19
HYEX02596

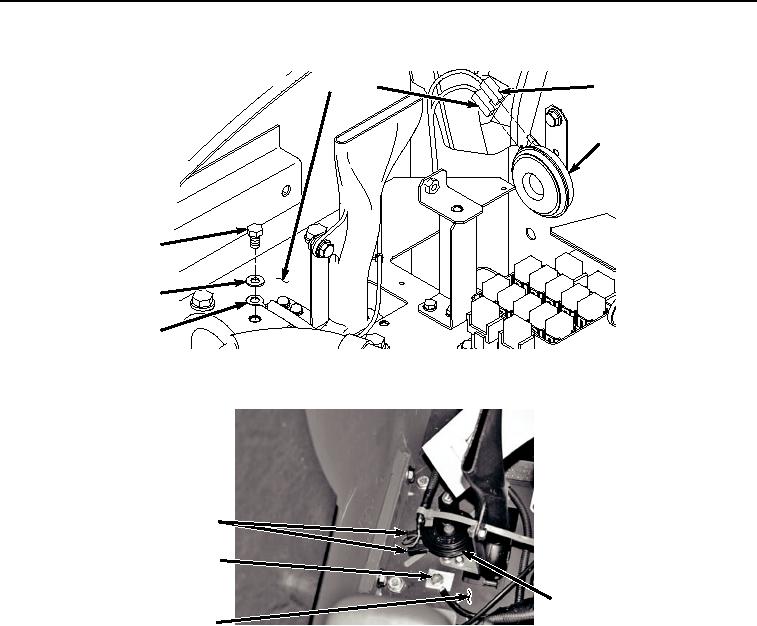

Figure 35.
Connect Security Alarm.
21
17, 18, 19
22
20
HYEX03301
Figure 36. Connect Security Alarm with Armored Cab.
16.
Install cab wiring harness W1 ground terminal W36 (Figure 36, Item 19) to bracket (Figure 36, Item 20) with
screw (Figure 36, Item 17) and washer (Figure 36, Item 18).
17.
Connect cab wiring harness W1 at connection X47 (Figure 37, Item 16) to right-hand console wiring harness
W11 (Figure 37, Item 14).
