REMOVAL - Continued
8
9
5
2
9
7
6
1
4
3
HYEX02185

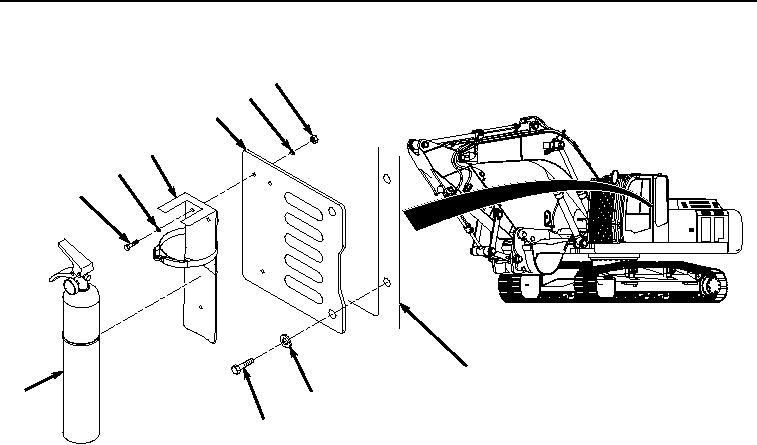

Figure 1.
Fire Extinguisher Bracket Removal.
2.
Remove two bolts (Figure 1, Item 3), washers (Figure 1, Item 4), mounting plate (Figure 1, Item 5), and bracket
(Figure 1, Item 2) from cab (Figure 1, Item 6).
3.
Remove three bolts (Figure 1, Item 7), locknuts (Figure 1, Item 8), six washers (Figure 1, Item 9), and bracket
(Figure 1, Item 2) from mounting plate (Figure 1, Item 5). Discard locknuts.
END OF TASK
INSTALLATION
1.
Install bracket (Figure 2, Item 2) to mounting plate (Figure 2, Item 5) with three bolts (Figure 2, Item 7), six
washers (Figure 2, Item 9), and three locknuts (Figure 2, Item 8).
