TM 5-3805-294-23-4
0574
REMOVAL - Continued
1
2
HYEX01163

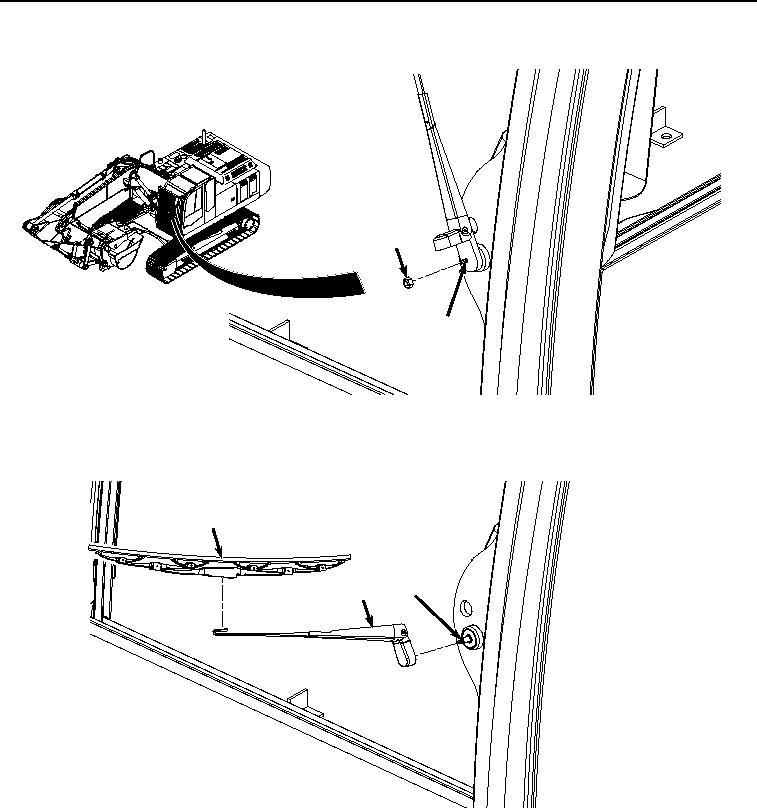

Figure 1. Wiper Arm Nut Removal.
2.
Remove wiper blade (Figure 2, Item 3) from wiper arm (Figure 2, Item 4).
3
4
2
HYEX01164
Figure 2.
Wiper Arm Removal.
3.
Swing wiper arm (Figure 2, Item 4) forward and remove from wiper motor shaft (Figure 2, Item 2).
4.
Remove two bolts (Figure 3, Item 5) and cover (Figure 3, Item 6) from wiper motor (Figure 3, Item 7). Discard
bolts.
