INSTALLATION - Continued
3
4
2
HYEX01164

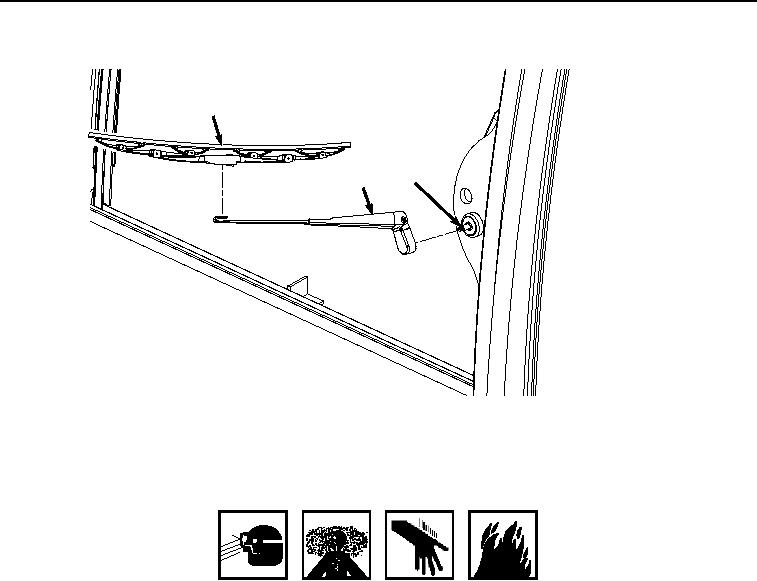

Figure 11.
Wiper Arm Installation.
6.
Install wiper blade (Figure 11, Item 3) to wiper arm (Figure 11, Item 4).
WARNING
ADHESIVES AND SEALANTS
7.
Apply thread lock to threads of wiper motor shaft (Figure 11, Item 2).
8.
Install nut (Figure 12, Item 1) to wiper motor shaft (Figure 12, Item 2).
