REMOVAL - Continued
8
7
6
5
HYEX01651

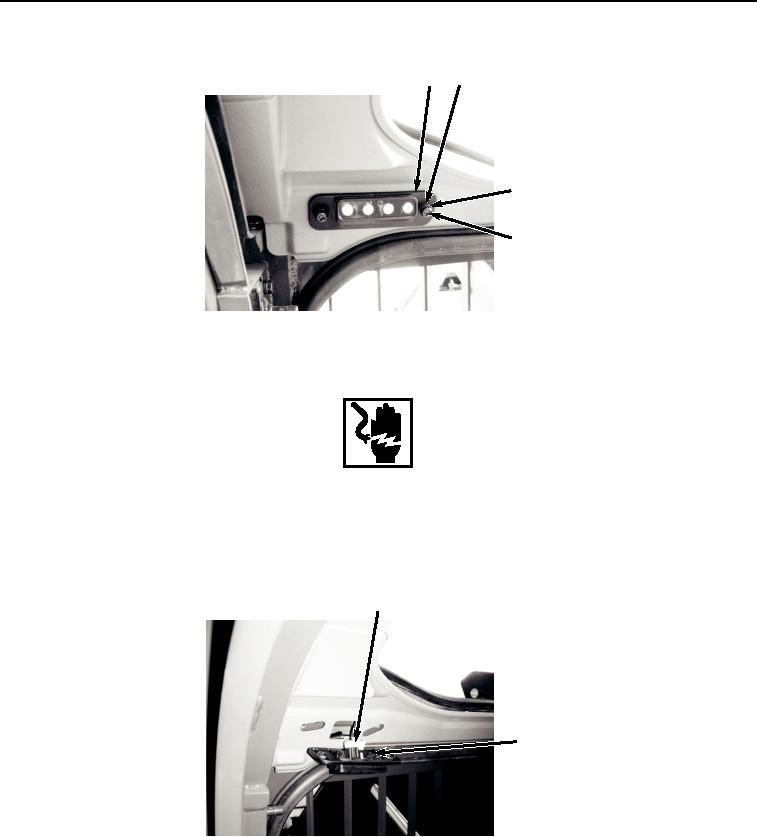

Figure 2.
Electrical Connector Removal.
WARNING
Ensure electrical power is off prior to working on all electrical connections. Prior to working
on or around vehicle, remove all jewelry, such as rings, ID tags, bracelets, etc. Jewelry, and
tools can catch on equipment, contact positive electrical circuits, and cause a direct short,
severe burns, or electrical shock. Failure to comply may result in injury or death to personnel.
4.
Disconnect wire connector (Figure 3, Item 9) from electrical connector (Figure 3, Item 8).
9
8
HYEX01650
Figure 3. Electrical Connector Wire Removal.
5.
Remove two clips (Figure 4, Item 1) from front cover (Figure 4, Item 3).
