INSTALLATION - Continued
13
12
HYEX03442

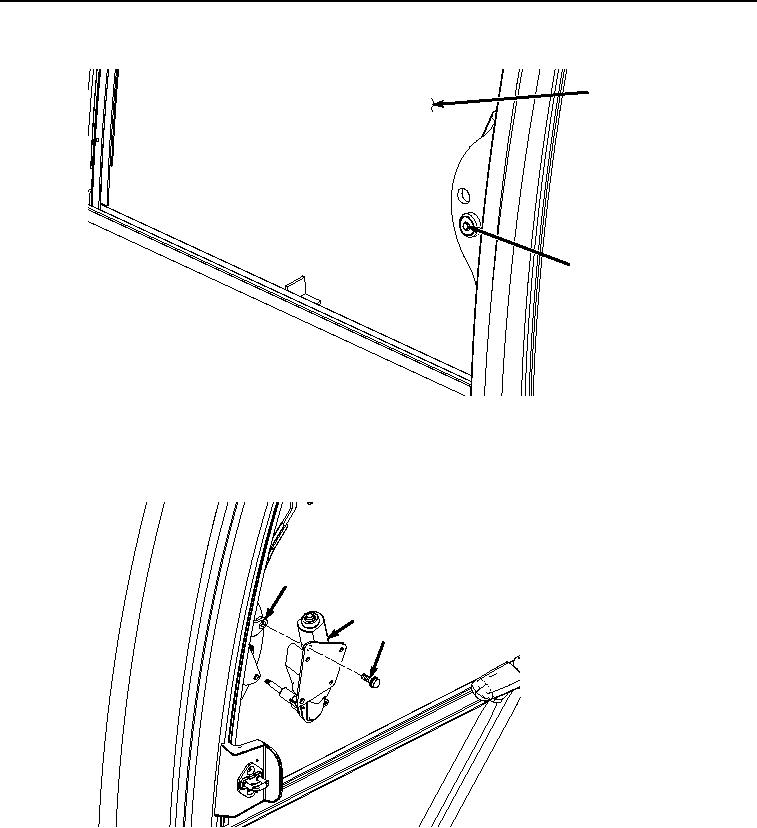

Figure 7. Grommet Installation.
2.
Install wiper motor (Figure 8, Item 7) to operator cab frame (Figure 8, Item 11) with two bolts (Figure 8, Item
10).
11
7
10
HYEX01167
Figure 8.
Wiper Motor Installation.
3.
Install electrical connector (Figure 9, Item 8) to receptacle (Figure 9, Item 9).
