TM 5-3805-294-23-4
0574
INSTALLATION - Continued
9
8
HYEX01166

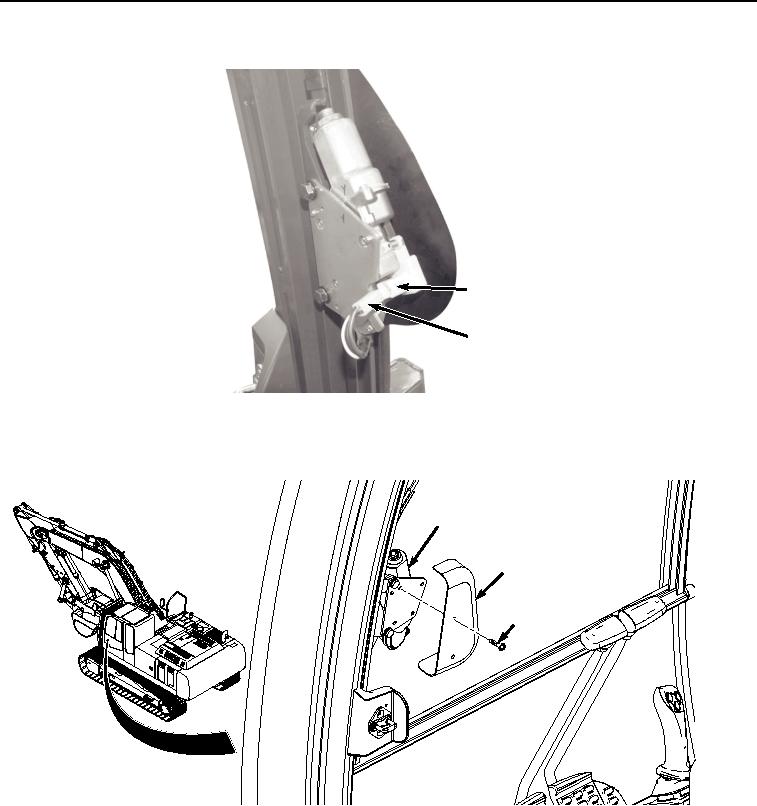

Figure 9. Electrical Connector Installation.
4.
Install cover (Figure 10, Item 6) to wiper motor (Figure 10, Item 7) with two bolts (Figure 10, Item 5).
7
6
5
HYEX01165
Figure 10. Wiper Motor Cover Installation.
NOTE
Operator protection guard shown removed for clarity.
5.
Bend wiper arm (Figure 11, Item 4) to 90 degrees and install to wiper motor shaft (Figure 11, Item 2).
