INSTALLATION - Continued
8
9
5
2
9
7
6
1
4
3
HYEX02185

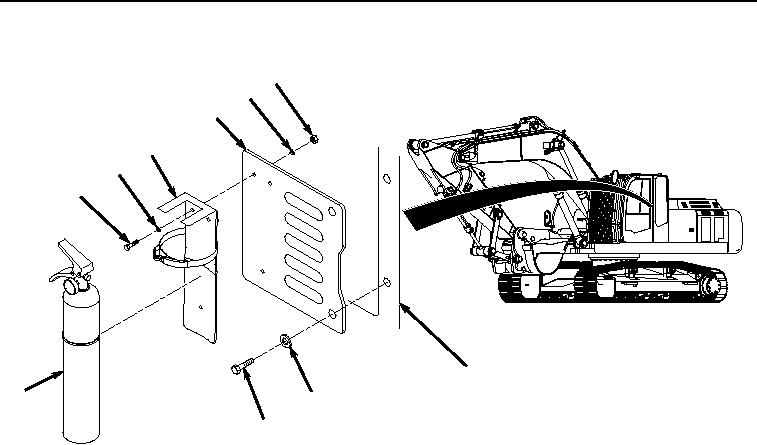

Figure 2.
Fire Extinguisher Bracket Installation.
2.
Install mounting plate (Figure 2, Item 5) and bracket (Figure 2, Item 2) to cab (Figure 2, Item 6) with two bolts
(Figure 2, Item 3) and washers (Figure 2, Item 4).
3.
Install fire extinguisher (Figure 2, Item 1) to bracket (Figure 2, Item 2).
END OF TASK
FOLLOW-ON MAINTENANCE
Perform the Standard Follow-On Maintenance Instructions. (Volume 3, WP 0384)
END OF TASK
END OF WORK PACKAGE
