TM 5-3805-294-23-4
0572
INSTALLATION - Continued
32
33
29
30
34
31
35
20
HYEX02598

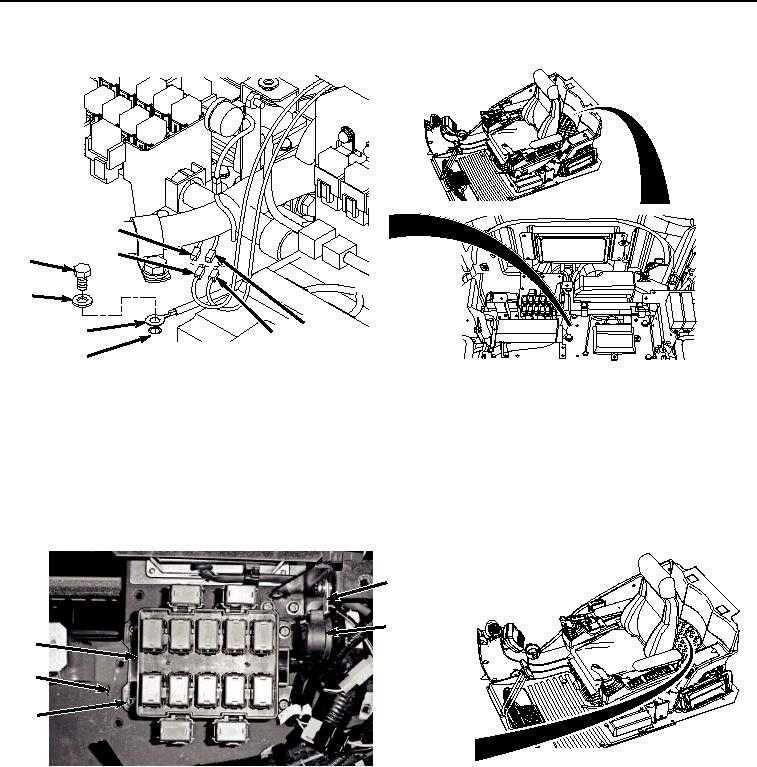

Figure 33. Ground Terminal Installation.
11.
Connect cab wiring harness W1 at connection B25 (Figure 33, Item 32) to right speaker wiring (Figure 33, Item
33).
12.
Install cab wiring harness W1 ground terminal W37 (Figure 33, Item 31) to bracket (Figure 33, Item 20) with
screw (Figure 33, Item 29) and washer (Figure 33, Item 30).
13.
Install monitor warning alarm (Figure 34, Item 27) to bracket (Figure 34, Item 28).
28
27
26
20
23
24
25
HYEX02597
Figure 34. Relay Block Installation.
14.
Install relay block (Figure 34, Item 26) to bracket (Figure 34, Item 20) with four screws (Figure 34, Item 23),
lockwashers (Figure 34, Item 24), and washers (Figure 34, Item 25).
NOTE
For Steps 15 and 16 use Figure 35 if HYEX has standard cab and Figure 36 if armored cab
is installed.
15.
Connect cab wiring harness W1 at two connections H2 (Figure 35, Item 21) to security alarm (Figure 35, Item
22).
