TM 5-3805-294-23-4
0578
REMOVAL - Continued
23
24
25
17
27
26
18
16
19
22
21
20
HYEX01936

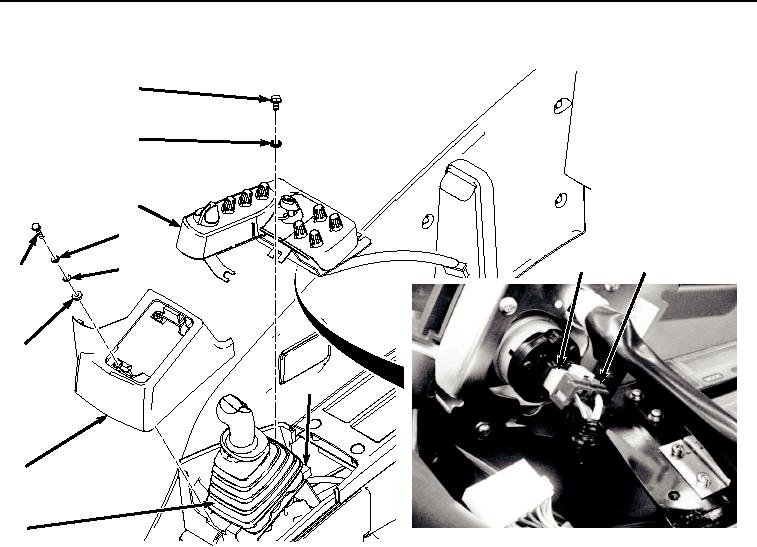

Figure 4. Right-Hand Switch Console Removal To Disconnect S1.
10.
Remove cover (Figure 4, Item 21) from right-hand console (Figure 4, Item 22).
11.
Remove two screws (Figure 4, Item 23), washers (Figure 4, Item 24), and right-hand switch console (Figure
4, Item 25) from right-hand console (Figure 4, Item 22).
12.
Tilt right-hand switch console (Figure 4, Item 25) to left side and disconnect harness W11 at connection S1
(Figure 4, Item 26) from backside of key switch (Figure 4, Item 27).
13.
Disconnect harness W11 connector B41 (Figure 5, Item 28) from air conditioner freeze control switch B41
(Figure 5, Item 29).
