TM 5-3805-294-23-4
0578
INSTALLATION - Continued
6.
Connect harness W11 connector M11 (Figure 8, Item 36) to air conditioner and heater mixer servomotor M11
(Figure 8, Item 37).
31
29
30
28
32
33
37
34
36
35
HYEX01937

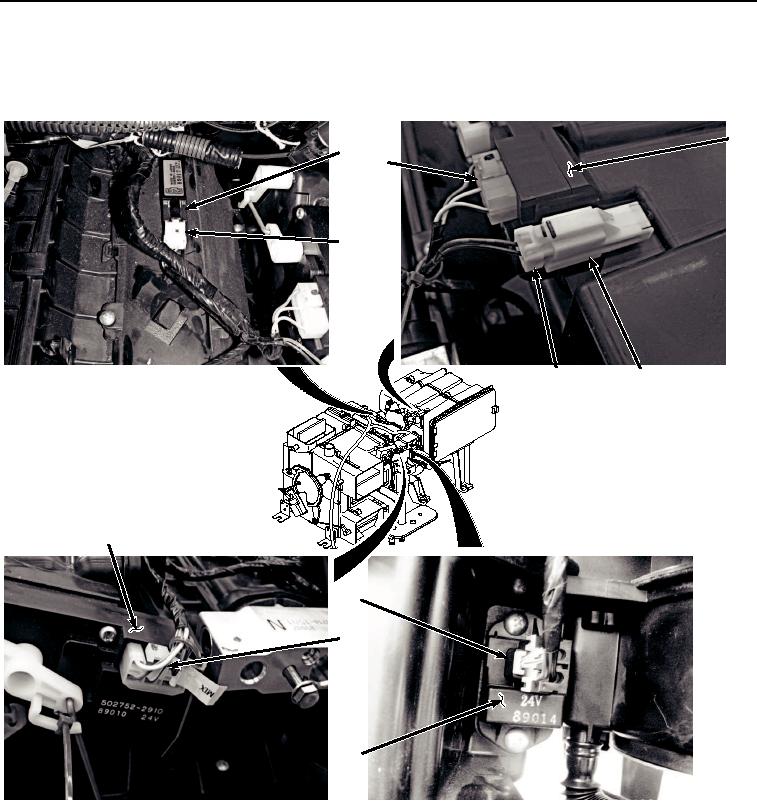

Figure 8. Air Conditioner/Heater Front View For Harness Installation.
7.
Connect harness W11 connector R16 (Figure 8, Item 34) to blower motor resistor and thermofuse R16 (Figure
8, Item 35).
8.
Connect harness W11 connector B42 (Figure 8, Item 32) to cab air temperature sensor B42 (Figure 8, Item
33).
9.
Connect harness W11 connector M9 (Figure 8, Item 30) to air conditioner and heater internal and external
servomotor M9 (Figure 8, Item 31).
