TM 5-3805-294-23-4
0578
REMOVAL - Continued
31
29
30
28
32
33
37
34
36
35
HYEX01937

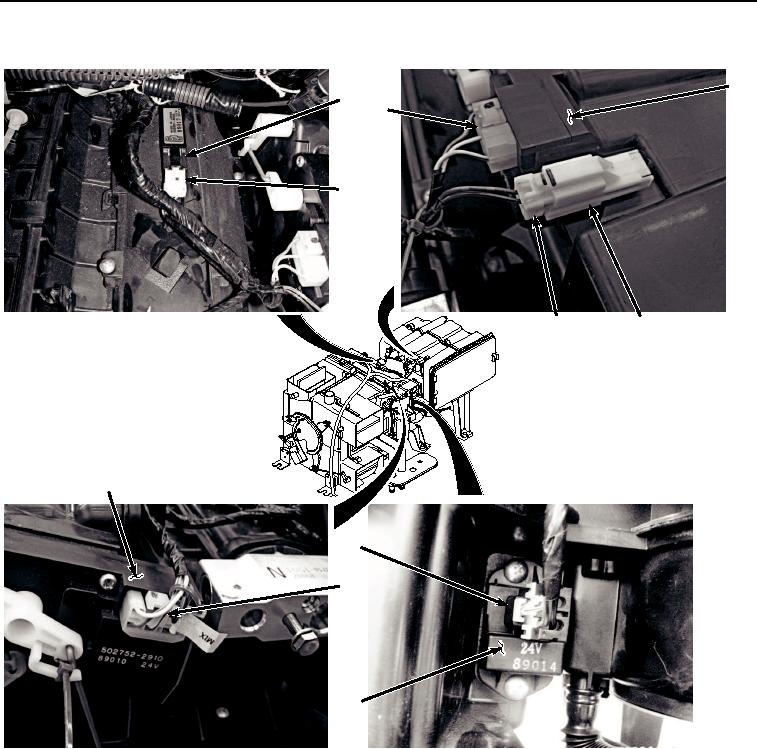

Figure 5. Air Conditioner/Heater Front View For Harness Removal.
14.
Disconnect harness W11 connector M9 (Figure 5, Item 30) from air conditioner and heater internal and external
servomotor M9 (Figure 5, Item 31).
15.
Disconnect harness W11 connector B42 (Figure 5, Item 32) from cab air temperature sensor B42 (Figure 5,
Item 33).
16.
Disconnect harness W11 connector R16 (Figure 5, Item 34) from blower motor resistor and thermofuse R16
(Figure 5, Item 35).
17.
Disconnect harness W11 connector M11 (Figure 5, Item 36) from air conditioner and heater mixer servomotor
M11 (Figure 5, Item 37).
18.
Disconnect harness W11 connector R17 (Figure 6, Item 38) from blower motor resistor R17 (Figure 6, Item
39).
