ARM LINKS AND PINS REMOVAL - Continued
22
7
17
19
21
HYEX01124

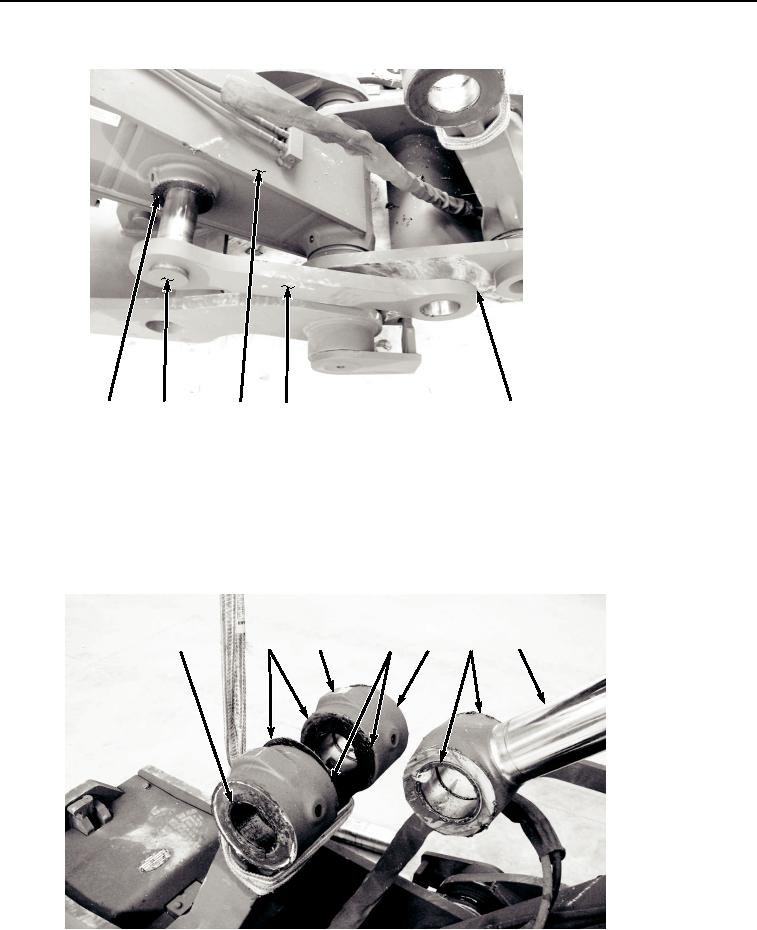

Figure 9. Arm Link and Pin Removal.
23.
With the aid of an assistant, remove arm link (Figure 9, Item 19) with pin (Figure 9, Item 7).
24.
Remove pin (Figure 9, Item 7) from arm link (Figure 9, Item 19).
25.
Remove shim (Figure 9, Item 22) from arm (Figure 9, Item 17).
26.
Remove two shims (Figure 10, Item 23) from bucket link (Figure 10, Item 18).
25
23
18
24
25
26
11
HYEX01125
Figure 10. Shim and Seal Removal.
