TM 5-3805-294-23-4
0626
ARM LINKS AND PINS INSTALLATION - Continued
15
16
17
HYEX01120

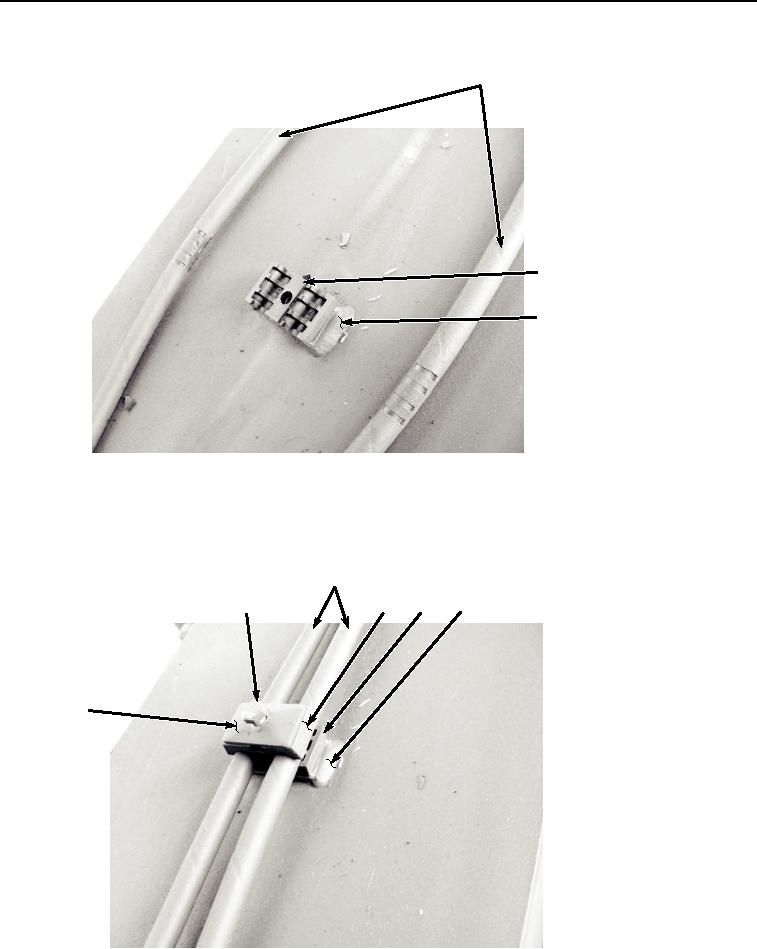

Figure 16.
Positioning Hoses.
24.
Position two hoses (Figure 16, Item 15) to hose retainer (Figure 16, Item 16).
25.
Install two hoses (Figure 17, Item 15) to hose retainer (Figure 17, Item 16) and arm (Figure 17, Item 17).
15
12
14
16
17
13
HYEX01119
Hose Retainer Installation.
Figure 17.
0626-13
