TM 5-3805-294-23-4
0626
ARM LINKS AND PINS REMOVAL - Continued
WARNING
Bucket link weighs approximately 200 lb (91 kg). Do not attempt to lift or move bucket link
without the aid of an assistant and suitable lifting device. Failure to comply may result in injury
or death to personnel.
WARNING
Do not remove pin from right side of bucket link and arm link. Bucket link and arm link can
come free and fall. Failure to comply may result in injury or death to personnel.
13.
Remove pin (Figure 6, Item 4) from left side of bucket link (Figure 6, Item 18) and bucket cylinder (Figure 6,
Item 11), leaving pin (Figure 6, Item 4) installed in right side of bucket link (Figure 6, Item 18) and arm link
(Figure 6, Item 19).
19
18
11
4
HYEX01121

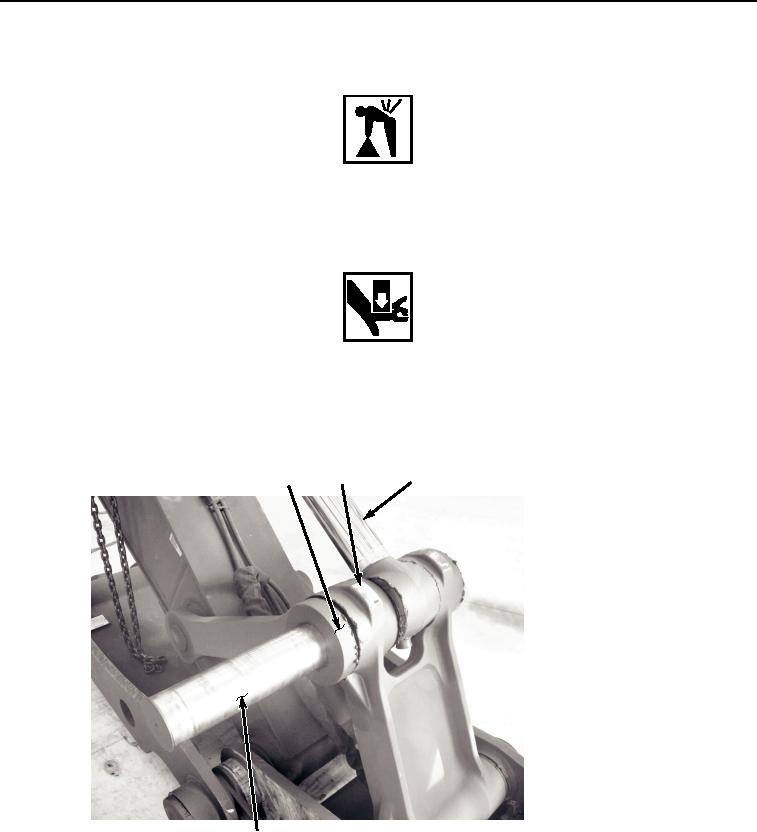

Figure 6.
Bucket Cylinder Rod End Removal.
NOTE
Bucket cylinder (Figure 6, Item 11) must be retracted enough to allow for installation of
suitable lifting device on bucket link (Figure 6, Item 18) and lifted enough to allow for
installation of wood block (Figure 7, Item 20).
