TM 5-3805-294-23-4
0629
ARM REMOVAL - Continued
HYEX03552

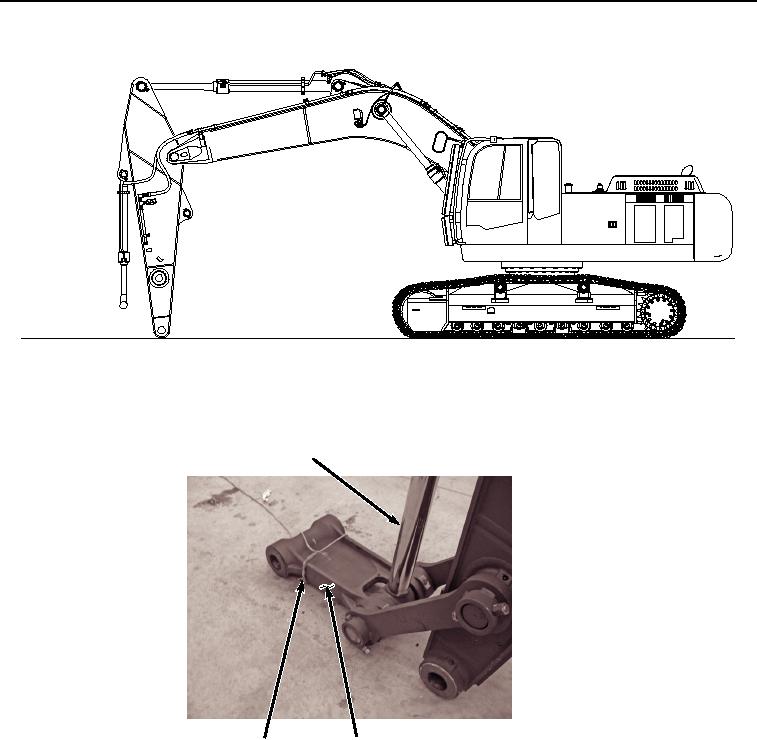

Figure 1.
Position Arm.
4.
Attach tag line (Figure 2, Item 1) to bucket link (Figure 2, Item 2).
3
1
2
HYEX02264
Figure 2. Attach Tag Line.
5.
With the aid of an assistant, extend bucket cylinder (Figure 2, Item 3) and position bucket link (Figure 2, Item
2) on ground.
6.
Shut down engine (TM 5-3805-294-10).
7.
Remove two nuts (Figure 3, Item 4) and bolt (Figure 3, Item 5) from arm link (Figure 3, Item 6) and pin (Figure
3, Item 7).
