ARM REMOVAL - Continued
15
18
19
17
20
16
HYEX02269

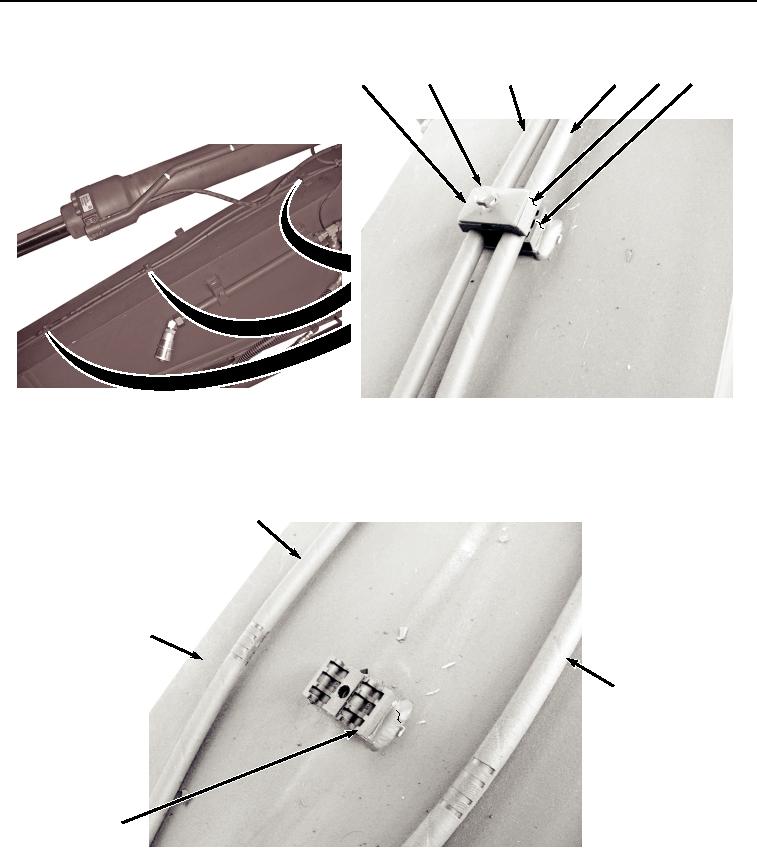

Figure 5.
Retainer Screw Removal.
13.
Remove hose (Figure 6, Item 18) and hose (Figure 6, Item 19) from three retainers (Figure 6, Item 20).
18
14
19
20
HYEX02270
Figure 6. Retainer Removal.
14.
Remove three retainers (Figure 6, Item 20) from arm (Figure 6, Item 14).
15.
With the aid of an assistant, position wood block (Figure 7, Item 21) between bucket cylinder (Figure 7, Item
3) and arm (Figure 7, Item 14).
