TM 5-3805-294-23-4
0629
ARM REMOVAL - Continued
3
25
HYEX02275

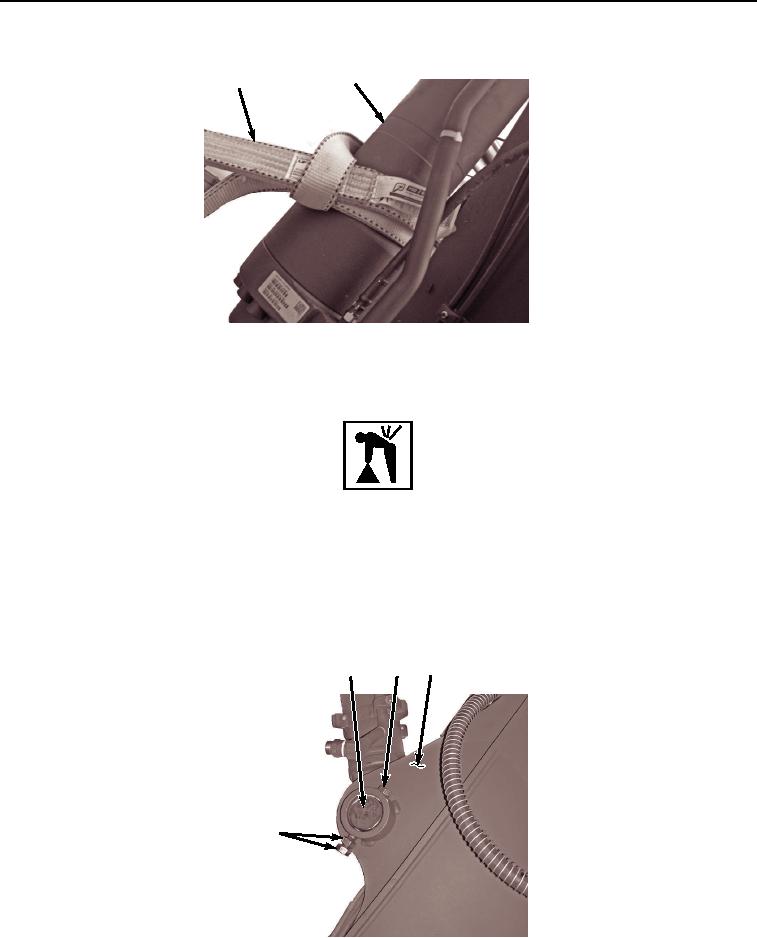

Figure 13.
Lifting Device Installation.
WARNING
Bucket cylinder weighs 430 lb (195 kg). Do not attempt to lift or move bucket cylinder without
the aid of an assistant and suitable lifting device. Failure to comply may result in injury or
death to personnel.
38.
With the aid of an assistant and suitable lifting device (Figure 13, Item 25), position bucket cylinder (Figure 13,
Item 3) in the upright or vertical position.
39.
Remove two nuts (Figure 14, Item 42) and bolt (Figure 14, Item 43) from arm (Figure 14, Item 14) and bucket
cylinder pin (Figure 14, Item 44).
44
43
14
42
HYEX02276
Figure 14. Bucket Cylinder Bolt Removal.
