TM 5-3805-294-23-4
0629
ARM REMOVAL - Continued
WARNING
Ensure electrical power is off prior to working on all electrical connections. Prior to working
on or around vehicle, remove all jewelry, such as rings, ID tags, bracelets, etc. Jewelry, and
tools can catch on equipment, contact positive electrical circuits, and cause a direct short,
severe burns, or electrical shock. Failure to comply may result in injury or death to personnel.
45.
Remove screw (Figure 17, Item 48) and wire connector (Figure 17, Item 49) from solenoid valve (Figure 17,
Item 50).
50
48
49
HYEX02279

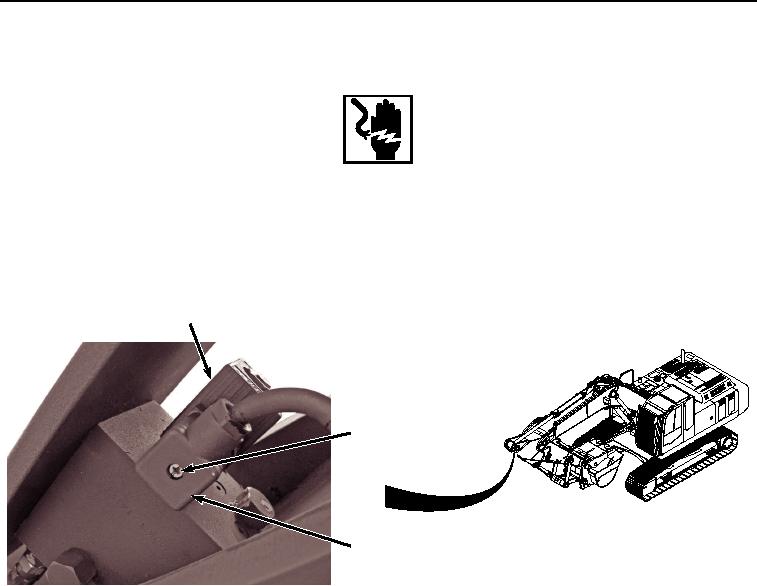

Figure 17. Solenoid Valve Connector Removal.
46.
Remove two bolts (Figure 18, Item 51), lockwashers (Figure 18, Item 52), washers (Figure 18, Item 53), cover
(Figure 18, Item 54), and solenoid valve (Figure 18, Item 50) from arm (Figure 18, Item 14). Discard
