TM 5-3805-294-23-4
0629
ARM REMOVAL - Continued
14
1
HYEX02539

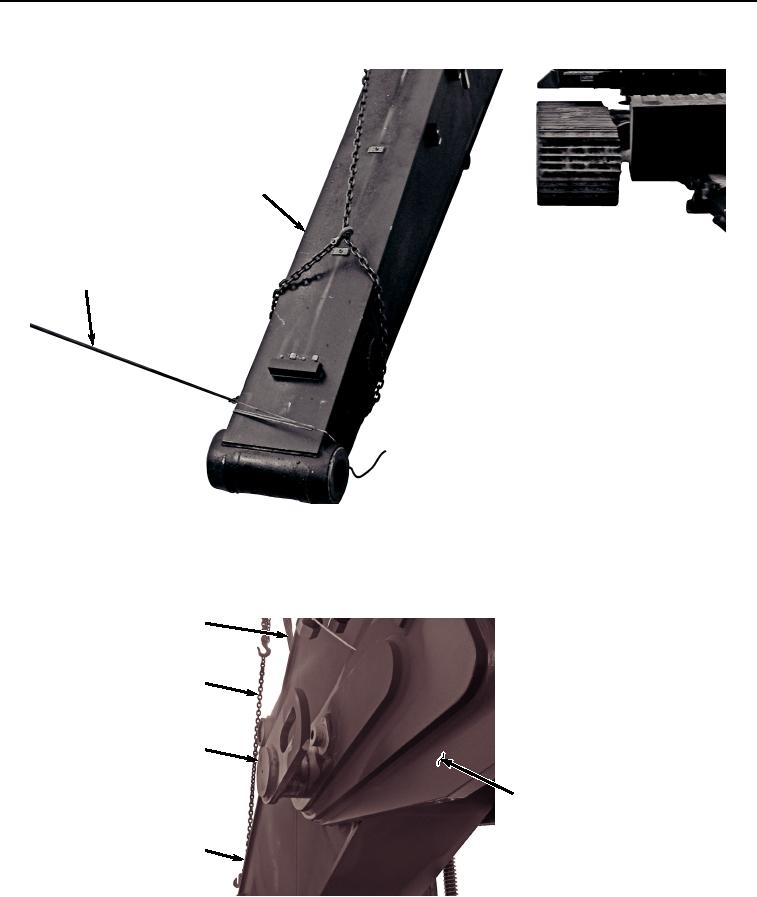

Figure 26. Attach Tag Line To Arm.
58.
With the aid of assistants and suitable lifting devices (Figure 27, Item 25) and (Figure 27, Item 80) remove arm
pin (Figure 27, Item 84) from arm (Figure 27, Item 14) and boom (Figure 27, Item 27).
25
80
84
27
14
HYEX02288
Figure 27. Arm Pin Removal.
59.
With the aid of assistants and suitable lifting devices (Figure 28, Item 25) and (Figure 28, Item 80), remove
arm (Figure 28, Item 14) from boom (Figure 28, Item 27) and place on suitable stand.
