TM 5-3805-294-23-4
0629
ARM REMOVAL
25
80
27
14
1
HYEX02289

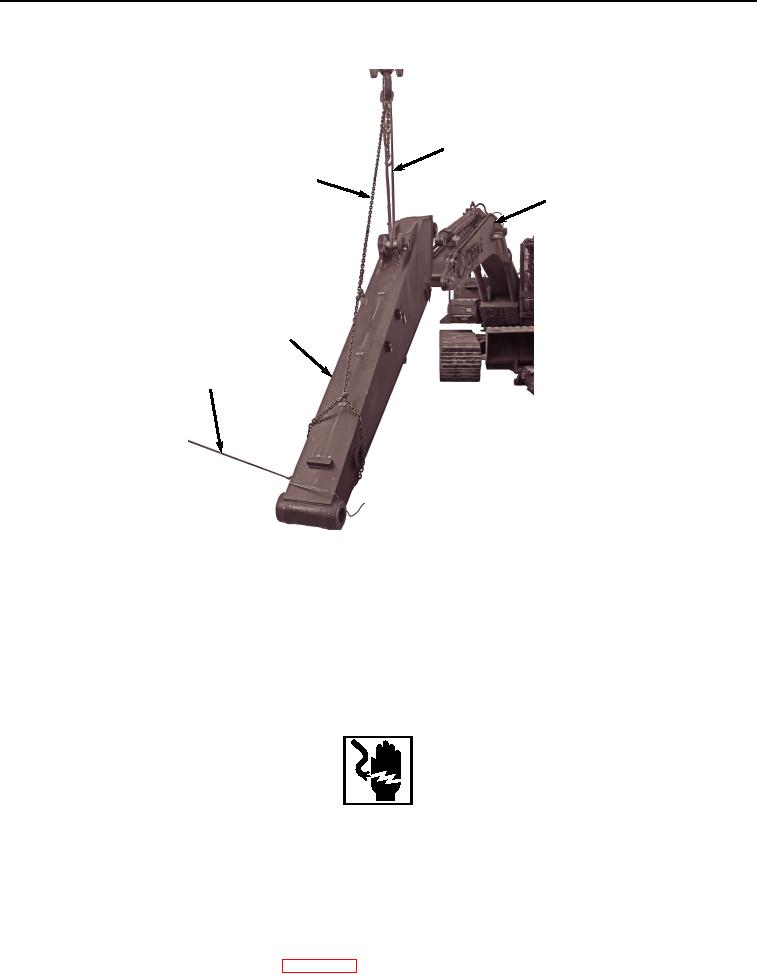

Figure 28.
Arm Removal.
60.
Remove two shims (Figure 28, Item 85) from boom (Figure 28, Item 27).
61.
Remove tag line (Figure 28, Item 1) from arm (Figure 28, Item 14).
END OF TASK
INSTALLATION
WARNING
Ensure electrical power is off prior to working on all electrical connections. Prior to working
on or around vehicle, remove all jewelry, such as rings, ID tags, bracelets, etc. Jewelry, and
tools can catch on equipment, contact positive electrical circuits, and cause a direct short,
severe burns, or electrical shock. Failure to comply may result in injury or death to personnel.
NOTE
Install tie wraps as noted during removal.
1.
Apply vacuum to hydraulic reservoir. (WP 0620)
