DISASSEMBLY - Continued
3.
Remove fitting (Figure 3, Item 4) and O-ring (Figure 3, Item 14) from solenoid valve (Figure 3, Item 12).
4.
Remove O-ring (Figure 3, Item 14) from fitting (Figure 3, Item 4). Discard O-ring.
5.
Remove fitting (Figure 3, Item 5) and O-ring (Figure 3, Item 15) from solenoid valve (Figure 3, Item 12).
6.
Remove O-ring (Figure 3, Item 15) from fitting (Figure 3, Item 5). Discard O-ring.
END OF TASK
ASSEMBLY
WARNING
NOTE
Install fittings as noted prior to removal.
1.
Lightly lubricate O-ring (Figure 4, Item 15) with clean oil.
2
13
12
14
4
15
5

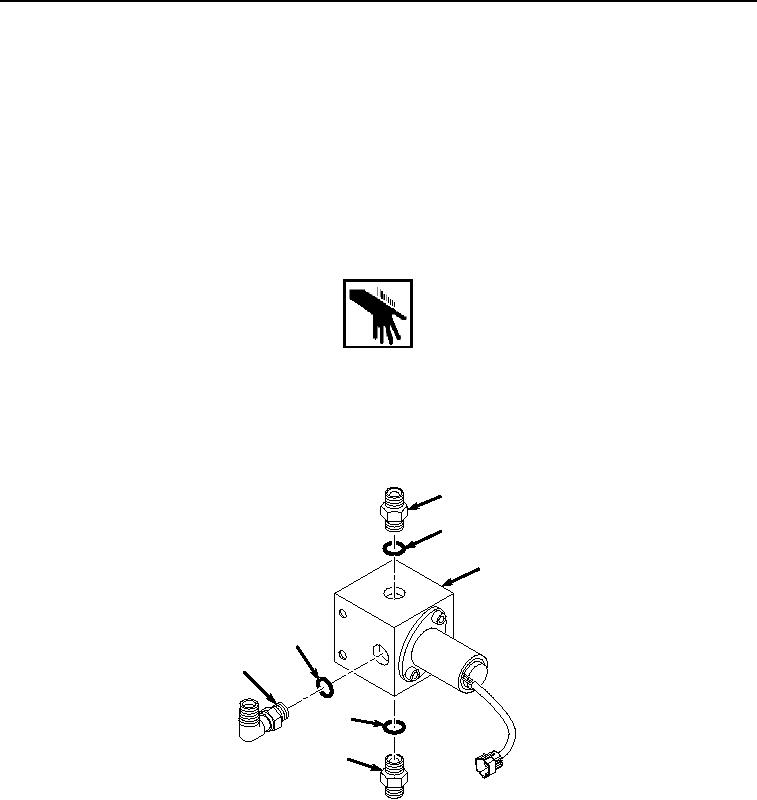

HYEX01314
Figure 4.
Solenoid Valve Assembly.
2.
Install O-ring (Figure 4, Item 15) to fitting (Figure 4, Item 5).
3.
Install fitting (Figure 4, Item 5) and O-ring (Figure 4, Item 15) to solenoid valve (Figure 4, Item 12).
4.
Lightly lubricate O-ring (Figure 4, Item 14) with clean oil.
5.
Install O-ring (Figure 4, Item 14) to fitting (Figure 4, Item 4).
6.
Install fitting (Figure 4, Item 4) and O-ring (Figure 4, Item 14) to solenoid valve (Figure 4, Item 12).
7.
Lightly lubricate O-ring (Figure 4, Item 13) with clean oil.
