TM 5-3805-294-23-4
0648
BOOM GUARD INSTALLATION - Continued
5
4
3
2
1
HYEX00695

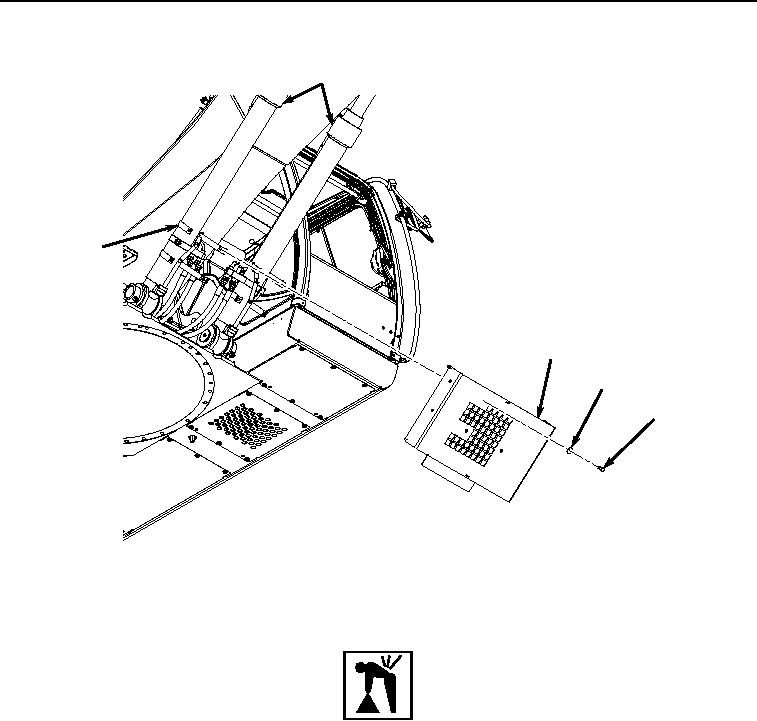

Figure 2.
Boom Guard Installation.
2.
Apply sealing compound to threads of eight screws (Figure 2, Item 1).
WARNING
Boom cylinders guard weighs approximately 93 lb (42 kg). Do not attempt to lift or move boom
cylinders guard without the aid of an assistant and suitable lifting device. Failure to comply
may result in injury or death to personnel.
3.
With the aid of an assistant and suitable lifting device, position boom guard (Figure 2, Item 3) to four strap
clamps (Figure 2, Item 4).
CAUTION
Have assistant use wrench on the weldnuts on the strap clamps to prevent twisting. Failure
to comply may result in damage to equipment.
4.
Install eight bolts (Figure 2, Item 1), washers (Figure 2, Item 2), and boom guard (Figure 2, Item 3) to four strap
clamps (Figure 2, Item 4).
END OF TASK
