TM 5-3805-294-23-4
0655
LEFT SIDE LOWER LINE INSTALLATION - Continued
20
21
9
18
22
18
23
18
24
19
18
17
HYEX01770

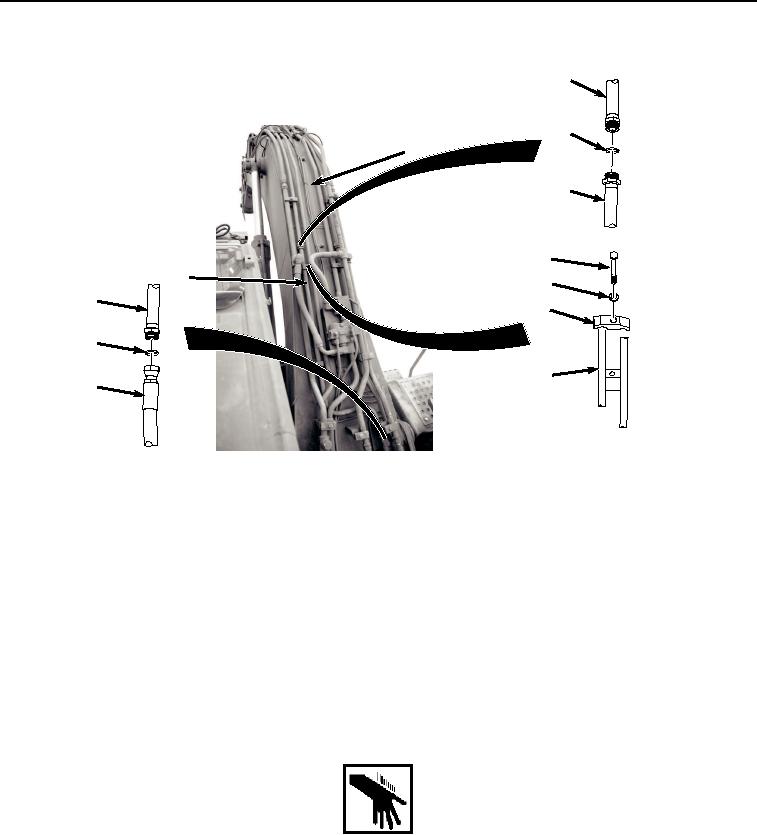

Figure 6. Left Side Lower Line Installation.
2.
Lightly lubricate O-ring (Figure 6, Item 21) with clean oil.
3.
Install O-ring (Figure 6, Item 21) to line (Figure 6, Item 18).
4.
Install line (Figure 6, Item 20) to line (Figure 6, Item 18).
5.
Lightly lubricate O-ring (Figure 6, Item 19) with clean oil.
6.
Install O-ring (Figure 6, Item 19) to line (Figure 6, Item 18).
7.
Install hose (Figure 6, Item 17) to line (Figure 6, Item 18).
END OF TASK
RIGHT SIDE UPPER LINE INSTALLATION
WARNING
LUBRICATING OIL
NOTE
Install hoses and fittings as noted during removal.
Install clamps as noted during removal.
Install tie wraps as noted during removal.
0655-9
