Figure 7. Right Sided Upper Line Installation.
BUCKET CYLINDER REPLACEMENT

Maintenance Manual For Hydraulic Excavator Type 1 With Hydraulic Thumb And Quick Latch -4 Page Navigation
  1170    1171    1172    1173    1174  1175  1176    1177    1178    1179    1180
. . . . .
TM 5-3805-294-23-4
0655
RIGHT SIDE LOWER LINE INSTALLATION - Continued
1.
Install line (Figure 8, Item 2) to boom (Figure 8, Item 9) with bolt (Figure 8, Item 6), washer (Figure 8, Item 7),
and clamp (Figure 8, Item 8).
4
9
5
2
2
6
7
2
8
3
2
1
HYEX01768

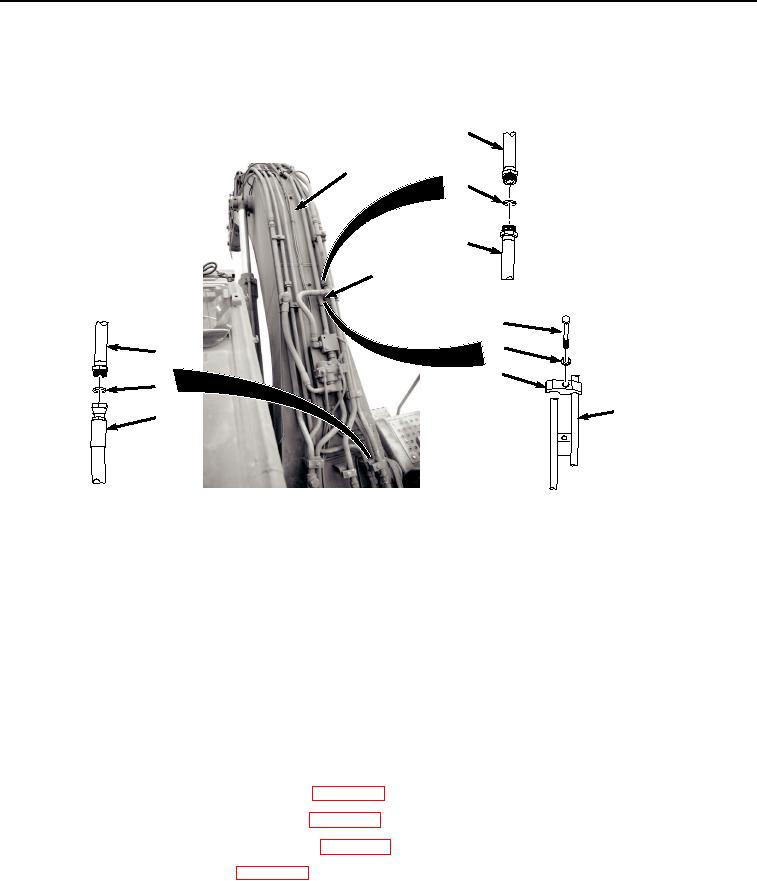

Figure 8.
Right Side Lower Line Installation.
2.
Lightly lubricate O-ring (Figure 8, Item 5) with clean oil.
3.
Install O-ring (Figure 8, Item 5) to line (Figure 8, Item 2).
4.
Install line (Figure 8, Item 4) to line (Figure 8, Item 2).
5.
Lightly lubricate O-ring (Figure 8, Item 3) with clean oil.
6.
Install O-ring (Figure 8, Item 3) to line (Figure 8, Item 2).
7.
Install hose (Figure 8, Item 1) to line (Figure 8, Item 2).
END OF TASK
FOLLOW-ON MAINTENANCE
1.
Install auxiliary circuit supply boom lines. (WP 0633)
2.
Install auxiliary circuit return boom lines. (WP 0637)
3.
Release vacuum from hydraulic reservoir. (WP 0620)
4.
Install negative battery cable. (WP 0521)
5.
Perform the Standard Follow-On Maintenance Instructions. (Volume 3, WP 0384)
END OF TASK
END OF WORK PACKAGE
0655-11/12 blank
