TM 5-3805-294-23-4
0504
INSTALLATION - Continued
26
27
28
26
23
24
25
26
HYEX01066

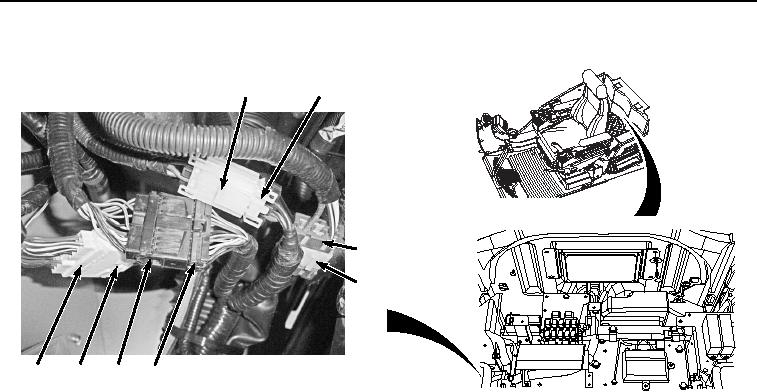

Figure 27. Right-Hand Console Wiring Harness W11 and Switch Panel A9 Connections.
35.
Connect right-hand console wiring harness W11 (Figure 27, Item 26) to cab wiring harness W1 at connection
X39 (Figure 27, Item 27).
36.
Connect right-hand console wiring harness W11 (Figure 27, Item 26) to cab wiring harness W1 at connection
X38 (Figure 27, Item 25).
37.
Connect switch panel A9 pigtail wiring harness (Figure 27, Item 24) to cab wiring harness W1 at connection
X27 (Figure 27, Item 23).
38.
Connect monitor controller wiring harness W3 (Figure 28, Item 20) to cab wiring harness W1 at connection
X24 (Figure 28, Item 22).
