TM 5-3805-294-23-4
0505
REMOVAL - Continued
Diodes are removed from cab wiring harness by pressing on plastic tab on side of holder
and pulling out diode.
1.
Remove diode V3 (Figure 1, Item 1) from cab wiring harness (W1) (Figure 1, Item 2).
3
5
4
6
2
2
1
HYEX02290

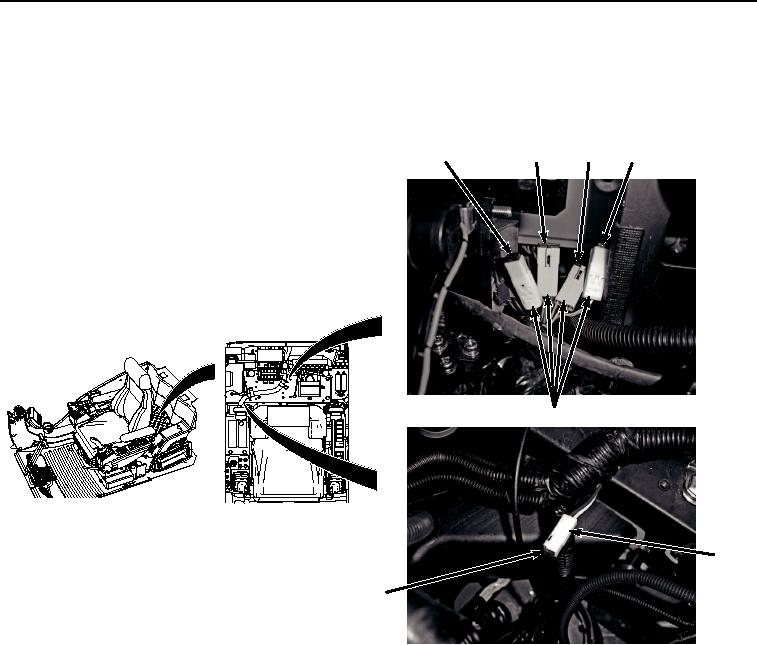

Figure 1. Diodes V3, V1, V2, V4, and V5 Location and Removal.
