INSTALLATION - Continued
HYEX03159
17 15
19
18
20, 21
22

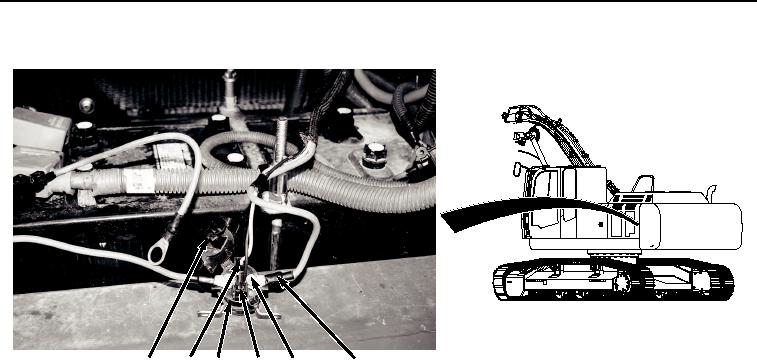

Figure 15. Engine Interface Wiring Harness To Glow Plug Relay Installation.
24.
Close cover (Figure 15, Item 19) on glow plug relay (Figure 15, Item 15).
25.
Connect interface wiring harness connector (Figure 15, Item 18) and interface wiring harness connector (Figure
15, Item 17) to glow plug relay (Figure 15, Item 15).
26.
Install coolant heater fuse holder (Figure 16, Item 16) and glow plug relay (Figure 16, Item 15) to machine
(Figure 16, Item 4) with two bolts (Figure 16, Item 13) and washers (Figure 16, Item 14).
