CINCH STYLE CONNECTOR REPAIR - Continued
24
22
HYEX03309

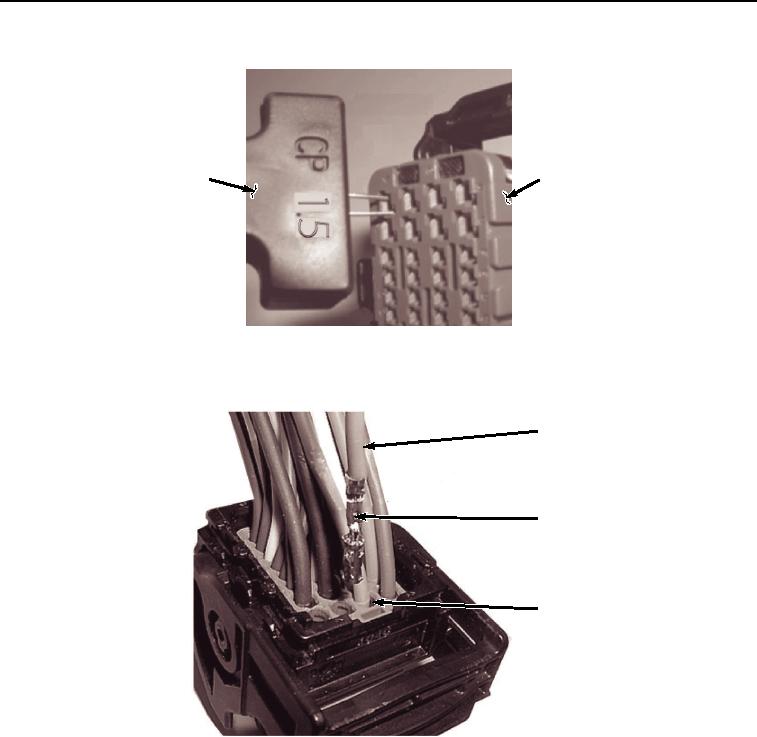

Figure 7. Terminal Removal.
4.
Remove wire (Figure 8, Item 25) and terminal (Figure 8, Item 26) from connector (Figure 8, Item 22).
25
26
22
HYEX03306
Figure 8. Wire Removal.
5.
Remove extraction tool from connector (Figure 8, Item 22).
6.
Cut and remove terminal (Figure 8, Item 26) from wire (Figure 8, Item 25).
7.
Remove 5/32 in. (Figure 9, Item 4 mm) of insulation (Figure 9, Item 27) from end of wire (Figure 9, Item 25).
