TM 5-3805-294-23-4
0511
CINCH STYLE CONNECTOR REPAIR - Continued
27
25
HYEX03303

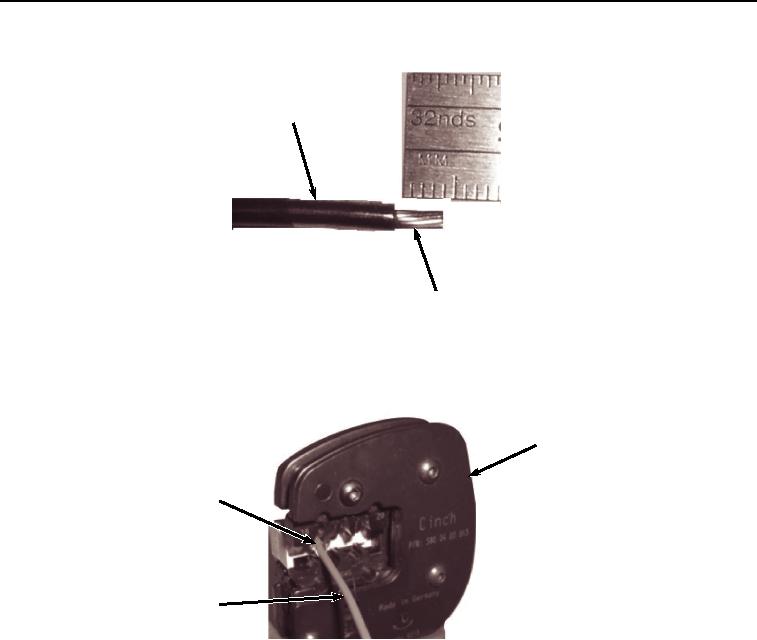

Figure 9. Insulation Removal.
8.
Using Cinch crimp tool (Figure 10, Item 28), install wire (Figure 10, Item 25) to terminal (Figure 10, Item 26)
and crimp.
28
26
25
HYEX03305
Figure 10.
Crimp Terminal.
NOTE
Terminal will seat only one way. If terminal does not push into the connector body socket,
check to make sure terminal is aligned correctly.
9.
Insert terminal (Figure 11, Item 26) and wire (Figure 11, Item 25) into connector (Figure 11, Item 22) and push
until terminal (Figure 11, Item 26) stops.
