TM 5-3805-294-23-4
0525
INSTALLATION - Continued
8
9
7
5
HYEX03351

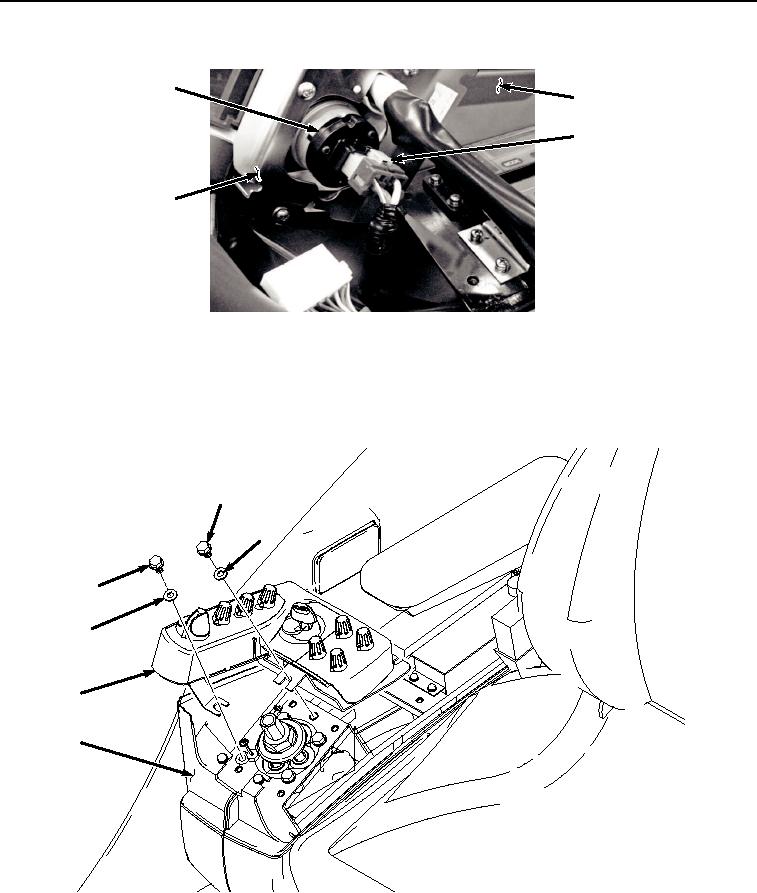

Figure 6.
Connect Key Switch.
6.
Install right-hand console wiring harness connector (Figure 6, Item 7) to key switch (Figure 6, Item 8).
7.
Install switch panel (Figure 7, Item 5) to right-hand console (Figure 7, Item 6) with two screws (Figure 7, Item
3) and washers (Figure 7, Item 4).
3
4
3
4
5
6
HYEX03353
Figure 7. Right-Hand Switch Panel Installation.
8.
Install right-hand console wire harness connector (Figure 8, Item 1) to switch panel connector (Figure 8, Item
2).
