TM 5-3805-294-23-4
0540
AIR CONDITIONER SYSTEM CHARGING - Continued
9
HYEX01884

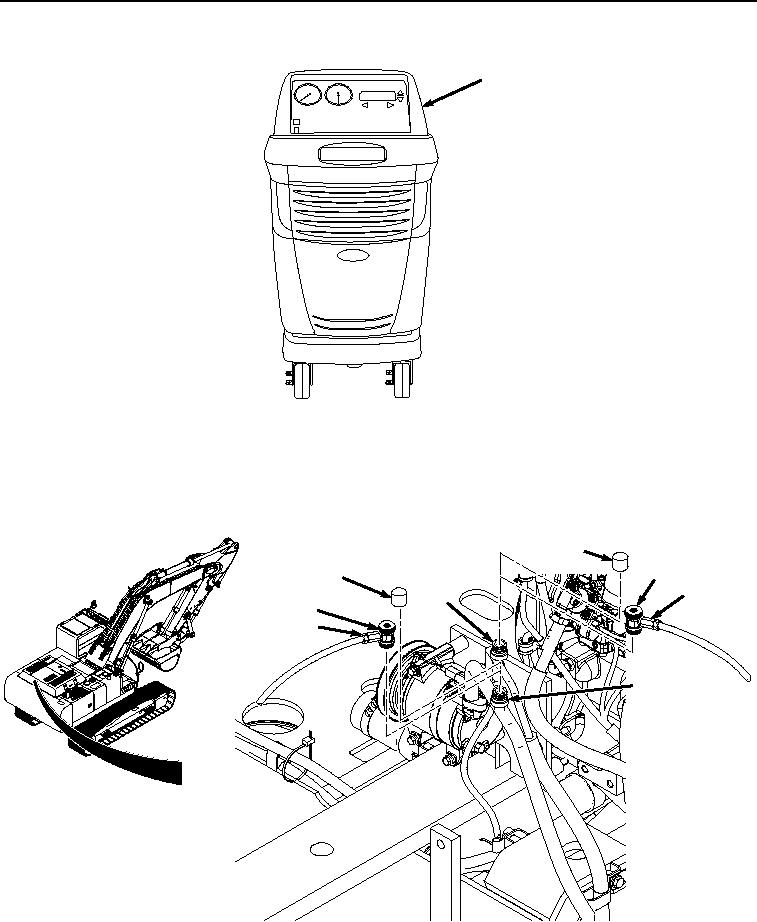

Figure 8. Charge System with Machine.
8.
Using recovery machine (Figure 8, Item 9) operating instructions, charge air conditioner system to 1.87 lb (0.84
kg) of refrigerant.
9.
Close high-pressure (red) hose coupler (Figure 9, Item 8) by turning counter-clockwise.
1
8
3
5
2
7
6
4
HYEX01885
Figure 9.
Cap Installation After Charging.
10.
Close low-pressure (blue) hose coupler (Figure 9, Item 7) by turning counter-clockwise.
