TM 5-3805-294-23-4
0555
REMOVAL - Continued
2
3
1
HYEX01804

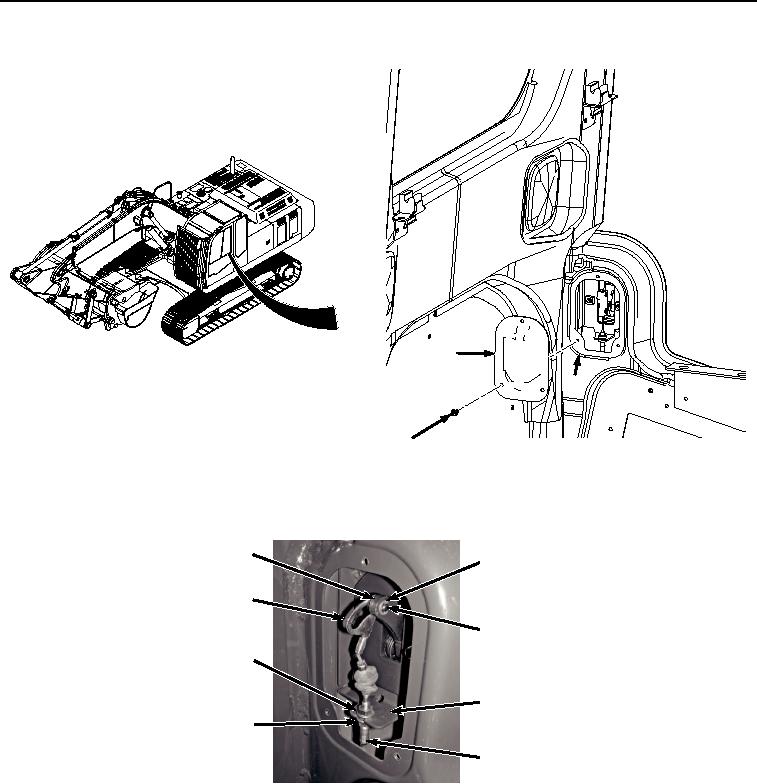

Figure 1. Latch Panel Cover Removal.
2.
Remove retaining ring (Figure 2, Item 4) from pin (Figure 2, Item 5). Discard retaining ring.
7
4
6
5
8
10
8
9
HYEX03563
Figure 2.
Pin Removal.
3.
Remove pin (Figure 2, Item 5) from bracket (Figure 2, Item 6) and latch (Figure 2, Item 7).
4.
Loosen two nuts (Figure 2, Item 8) and remove cable (Figure 2, Item 9) from bracket (Figure 2, Item 10).
5.
Tie twine to end of cable (Figure 2, Item 9).
6.
Remove two screws (Figure 3, Item 11) and cover (Figure 3, Item 12) from release handle (Figure 3, Item 13).
Discard screws.
