HYDRAULIC PUMP COMPARTMENT DOOR LATCH, AND ISOLATOR REPLACEMENT
Figure 3. Latch Removal.

Maintenance Manual For Hydraulic Excavator Type 1 With Hydraulic Thumb And Quick Latch -4 Page Navigation
  791    792    793    794    795  796  797    798    799    800    801
.
TM 5-3805-294-23-4
0598
DOOR REMOVAL - Continued
4
1
2
3
5
6
HYEX01032

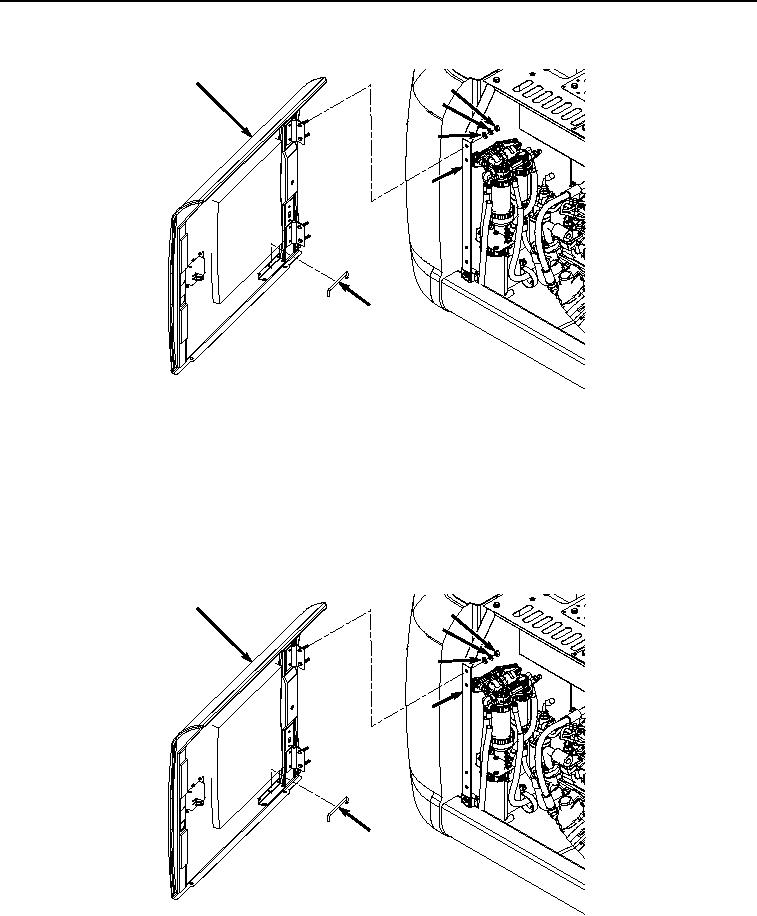

Figure 1. Door Removal.
2.
Remove hold open latch (Figure 1, Item 6) from door (Figure 1, Item 4).
END OF TASK
DOOR INSTALLATION
1.
Install hold open latch (Figure 2, Item 6) to door (Figure 2, Item 4).
4
1
2
3
5
6
HYEX01032
Figure 2. Door Installation.
0598-2
