TM 5-3805-294-23-4
0531
ADJUST - Continued
11
3
4
5
1
2
HYEX00473

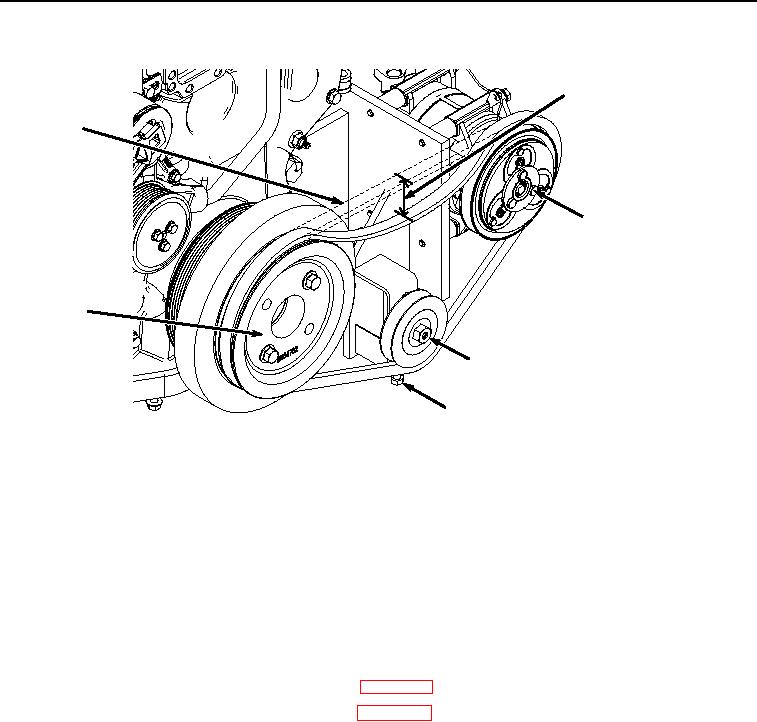

Figure 5.
Air Conditioner Belt Adjustment.
2.
Measure for a deflection (Figure 5, Item 11) of no more than 1/2 in.
3.
If necessary, loosen tensioner pulley (Figure 5, Item 1).
4.
Turn screw (Figure 5, Item 2) to increase or decrease deflection (Figure 5, Item 11) to 3/8 in. to 1/2 in. (9 mm
to 12 mm).
5.
Tighten tensioner pulley (Figure 5, Item 1).
END OF TASK
FOLLOW-ON MAINTENANCE
1.
Install cooling compartment lower access cover. (WP 0591)
2.
Install engine compartment lower access cover. (WP 0593)
3.
Perform the Standard Follow-On Maintenance Instructions. (Volume 3, WP 0384)
END OF TASK
END OF WORK PACKAGE
