REMOVAL - Continued
26
25
22
21
20
23
24
HYEX02335

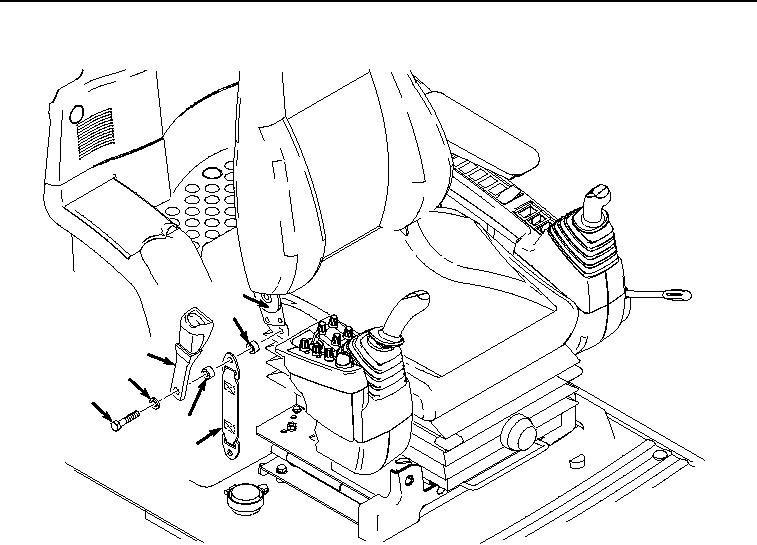

Figure 4.
Right Seat Belt Removal.
7.
Remove bolt (Figure 5, Item 27), lockwasher (Figure 5, Item 28), belt (Figure 5, Item 24), and spacer (Figure
5, Item 29) from bracket (Figure 5, Item 30).
0579-5
