SEAT STAND REMOVAL - Continued
7
6
2
5
4
3
1
HYEX02028

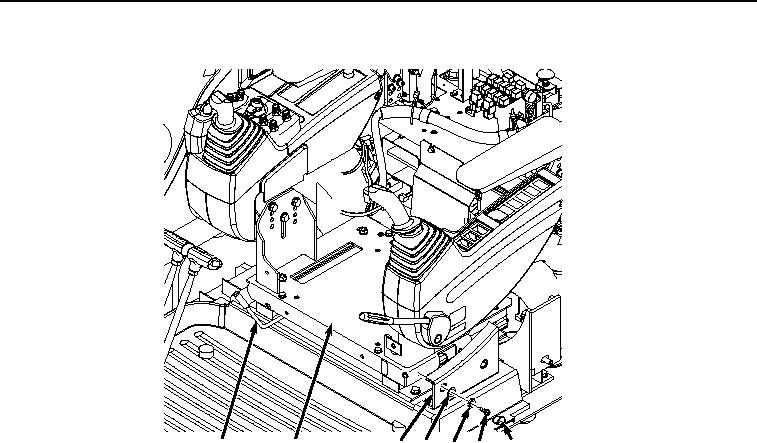

Figure 1. Seat Stand Cover Removal
2.
Remove two screws (Figure 1, Item 3), lockwashers (Figure 1, Item 4), washers (Figure 1, Item 5), and cover
(Figure 1, Item 2) from seat stand (Figure 1, Item 6). Discard lockwashers.
3.
Push lever (Figure 1, Item 7) down and move seat stand (Figure 1, Item 6) forward.
4.
Remove two screws (Figure 2, Item 8), lockwashers (Figure 2, Item 9), washers (Figure 2, Item 10), and air
conditioning/heater duct (Figure 2, Item 11) from seat stand (Figure 2, Item 6). Discard lockwashers.
