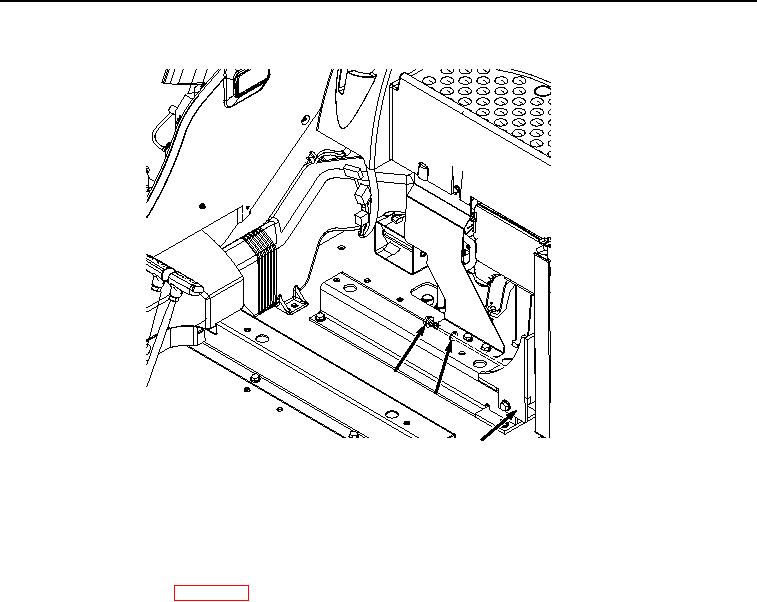

Figure 20. Bracket Screw Installation.

Maintenance Manual For Hydraulic Excavator Type 1 With Hydraulic Thumb And Quick Latch -4 Page Navigation
709

TM 5-3805-294-23-4

0581

SUPPORT INSTALLATION - Continued

HYEX02034

Figure 20.

Bracket Screw Installation.

END OF TASK

SEAT STAND INSTALLATION

Install cab floor mat. (WP 0558)

Position seat stand (Figure 21, Item 6) to cab (Figure 21, Item 24).

0581-19
