TM 5-3805-294-23-4
0624
REMOVAL - Continued
2
4
HYEX03449

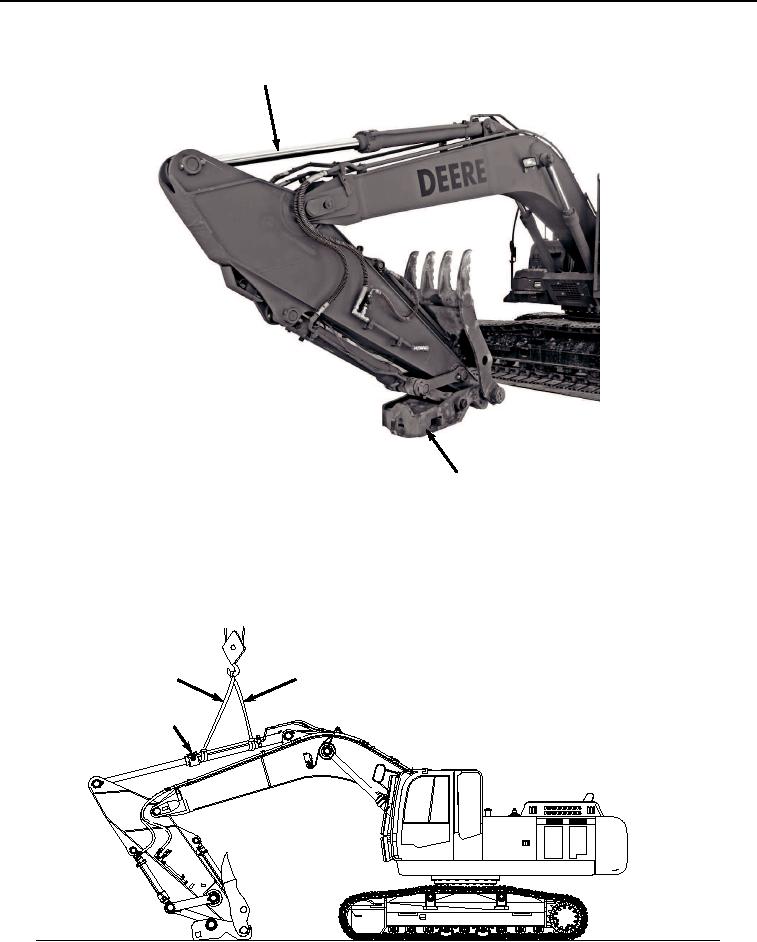

Figure 2. Retract Arm Cylinder.
6.
Shut machine off (TM 5-3805-294-10).
7.
Attach suitable lifting device (Figure 3, Item 5) to arm cylinder (Figure 3, Item 2) with two points of lift at each
end of cylinder barrel.
5
5
2
HYEX03447
Figure 3.
Attach Lifting Device.
