INSTALLATION - Continued
1
6
5
2
4
3
HYEX01796

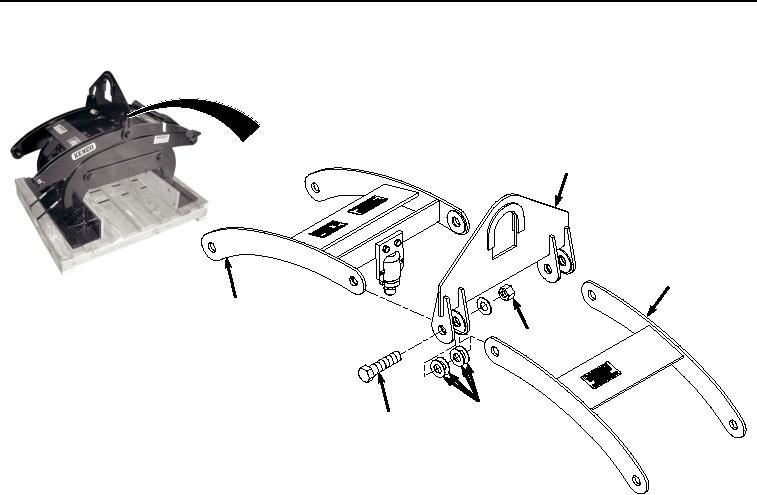

Figure 2. Barrier Grapple Lift Bail Installation.
2.
Install grapple lift bale (Figure 2, Item 1) on arms (Figure 2, Item 5) and (Figure 2, Item 6) with two bolts (Figure
2, Item 3), locknuts (Figure 2, Item 2), and eight washers (Figure 2, Item 4).
3.
Lubricate grapple lift bale joints with penetrating oil.
END OF TASK
FOLLOW-ON MAINTENANCE
Perform the Standard Follow-On Maintenance Instructions. (Volume 3, WP 0384)
