POWER TRAIN - Continued
119 120 121 122 123
117
124
125
129
128
127
126
118
HYEX01693

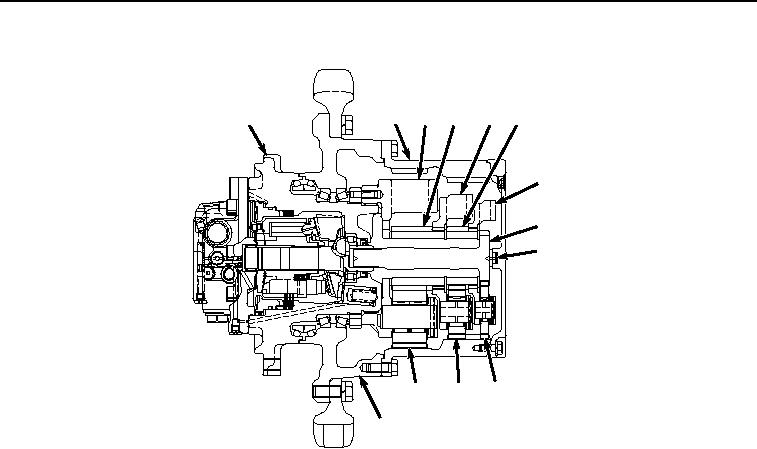

Figure 18. Travel Gearbox Operation.
FUEL SYSTEM
Fuel System Operation
The fuel transfer pump (Figure 19, Item 130) draws fuel from the fuel tank through the primary, filter/water separator
(Figure 19, Item 131) and sends it through the lubricity filter (Figure 19, Item 132), then final fuel filter/water separator
(Figure 19, Item 133) on its way to the high-pressure fuel pump (Figure 19, Item 134).
