TM 5-3805-294-23-1
0003
FUEL SYSTEM - Continued
143
144
142
HYEX01701

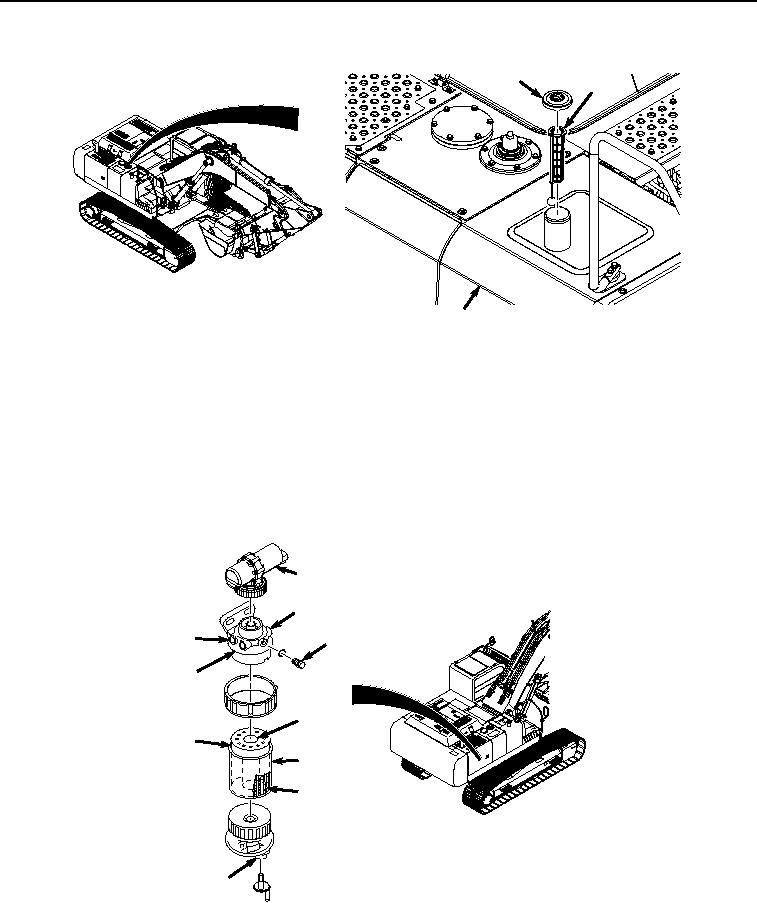

Figure 20.
Fuel Tank and Tank Strainer.
Filters
The primary fuel filter/water separator is positioned to protect the fuel transfer pump (Figure 21, Item 130) from
coarse contaminants, which could damage, clog, or get stuck inside it. Fuel enters the filter through inlet (Figure 21,
Item 145) at filter head (Figure 21, Item 146), and flows down through the tube (Figure 21, Item 147) in the center
of the element (Figure 21, Item 148). Water and the heavier fuel contaminants settle to the bottom of the element,
and from there, they pass into the water/sediment bowl (Figure 21, Item 149). Water can be drained off, and
contaminants removed, from the bowl, without removing the filter element.
130
152
153
145
146
147
151
148
150
149
HYEX01696
Figure 21. Primary Fuel Filter.
